Wall Mount Enclosure

Secure sensitive electrical controls and IT gear against dust, washdowns, and unauthorized access with a premium electrical enclosure. Every custom wall mount enclosure is engineered to your exact tolerances using 14-Gauge 304/316L Stainless Steel, Mild Steel, or 5052 Aluminum. Pre-punched knockouts eliminate on-site drilling.

Get In Touch

Wall Mount Enclosures Engineered to Cut Installation Time by 30 Minutes

In the field, labor is your highest variable cost. Every ShincoFab wall mount enclosure isn’t just a standard industrial enclosure fabricated to protect equipment; it is purpose-built to eliminate on-site guesswork, rework, and installation friction.

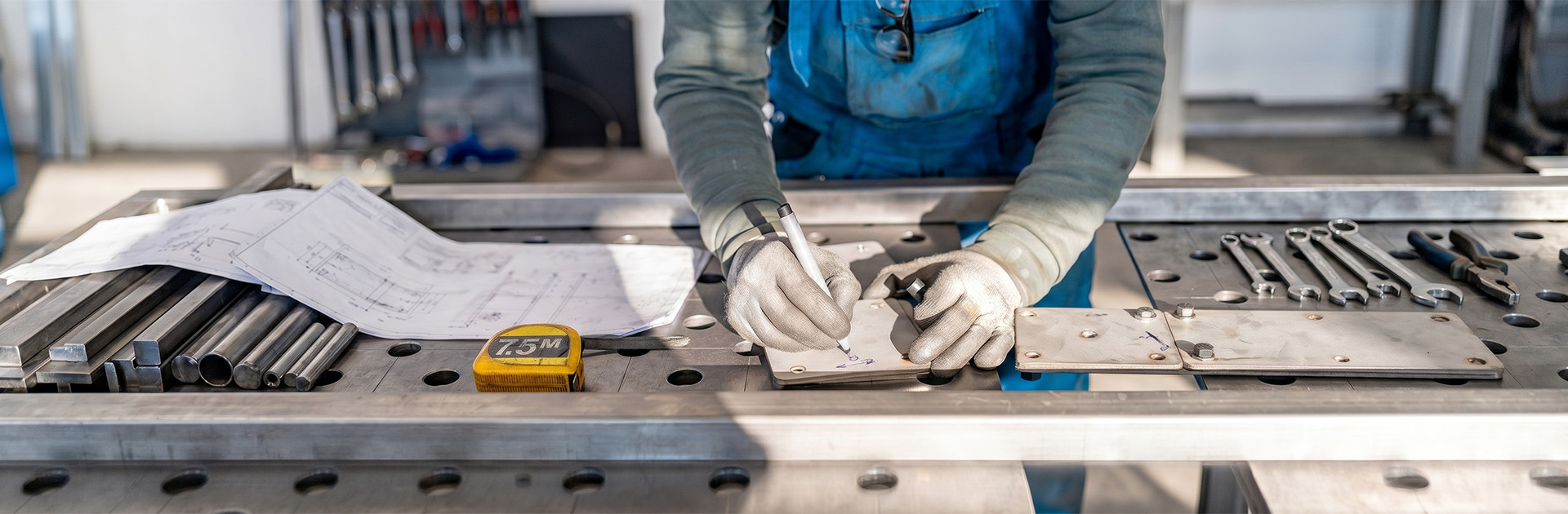

Engineer marking and measuring for precise wall mount installation

Zero-Guesswork Mounting

Every unit ships with a 1:1 scale paper mounting template and precision laser-etched leveling marks on the rear panel.

The Impact: Eliminates redundant measuring, misaligned holes, and the risk of drilling out of tolerance. A single technician can mark, drill, and mount the enclosure with 100% accuracy on the first try.

Ships Complete with Structural Mounting Hardware

Stop halting installations for missing fasteners. We supply industrial-grade structural anchors (rated for both solid concrete and reinforced drywall) pre-packaged securely inside every enclosure.

The Impact: Keeps your technicians on the job site. Eliminates frustrating workflow interruptions and unplanned trips to the hardware store.

Intelligent Routing & Bend Radius Compliance

Eliminate the need for field drilling and protect sensitive electronics from dangerous metal shavings. Our enclosures feature factory punched concentric knockouts (1/2 in., 3/4 in., 1 in., and 1 1/4 in.) on both the top and bottom gland plates.

The Impact: Ensures optimal cable entry positioning and guarantees that rigid fiber optic and CAT6a cables maintain their minimum bend radius, preventing catastrophic signal degradation.

Standard Wall Mount Enclosures by Environment

ShincoFab eliminates the hassle of deciphering arbitrary product codes. Select your application below to view standard sizes, verify material specifications, and instantly download the exact 3D CAD models you need for your assembly.

Indoor & IT

Category: Indoor / IT & Telecom
Compliance: NEMA 1 & 12 (IP54 Equivalent)
Best For: Factory floors, server rooms, and basic electrical sub-panels. Functions perfectly as a network equipment cabinet or cable management wall mount enclosure where liquid washdown is not a factor.
Material: 14-Gauge / 16-Gauge Mild Steel with Powder Coat Finish.
Key Features: Optimized for thermal management (louvers/fan cutouts available); superior cable access geometry; clean, aesthetic finish.

Inquiry Now

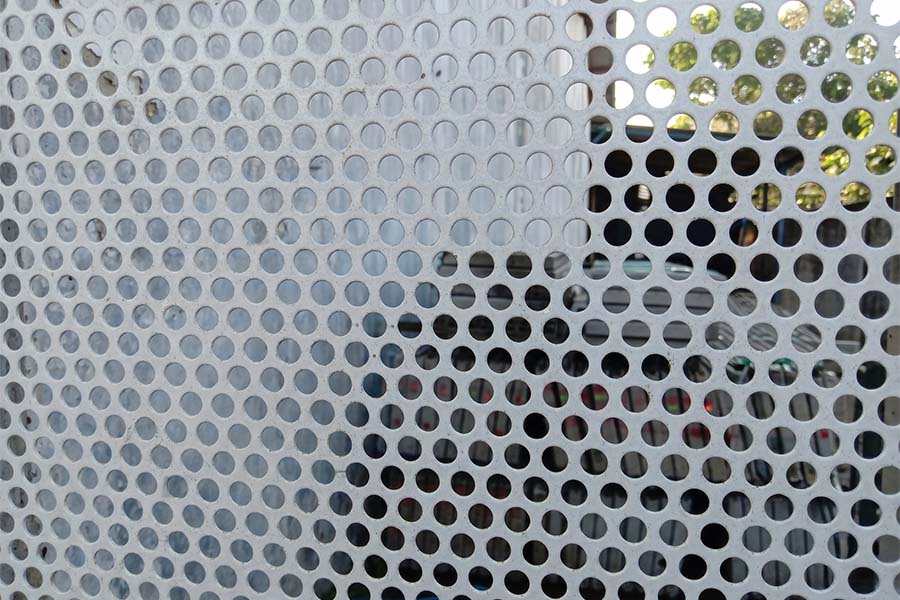

Precision ventilation louvers for thermal management
Close-up of industrial electrical enclosure

Harsh Environment & Washdown

Category: Harsh Environment / Sanitary
Compliance: NEMA 4X / IP66
Best For: Food processing, pharmaceutical facilities, chemical plants. Specify this stainless steel wall mount enclosure for environments requiring aggressive sterilization.
Material: 14-Gauge 304 or 316L Stainless Steel, delivering the ultimate corrosion resistant housing.
Key Features: Continuous seam welding (no crevices for bacteria buildup); poured-in-place seamless polyurethane gaskets; corrosion-resistant hardware.

Inquiry Now

Outdoor & Remote IoT

Category: Outdoor / Remote Node / Wall mount IoT enclosure
Compliance: NEMA 4 / IP67 & IP68
Best For: Remote IoT sensors, solar charge controllers, and unprotected outdoor installations. Select this outdoor enclosure when facing extreme weather.
Material: UV-Stabilized polycarbonate wall mount box (ASA) or Marine-Grade 5052 Aluminum.
Key Features: 100% watertight seals against submersion; high UV resistance prevents chalking and brittleness; lightweight for pole-mounting.

Inquiry Now

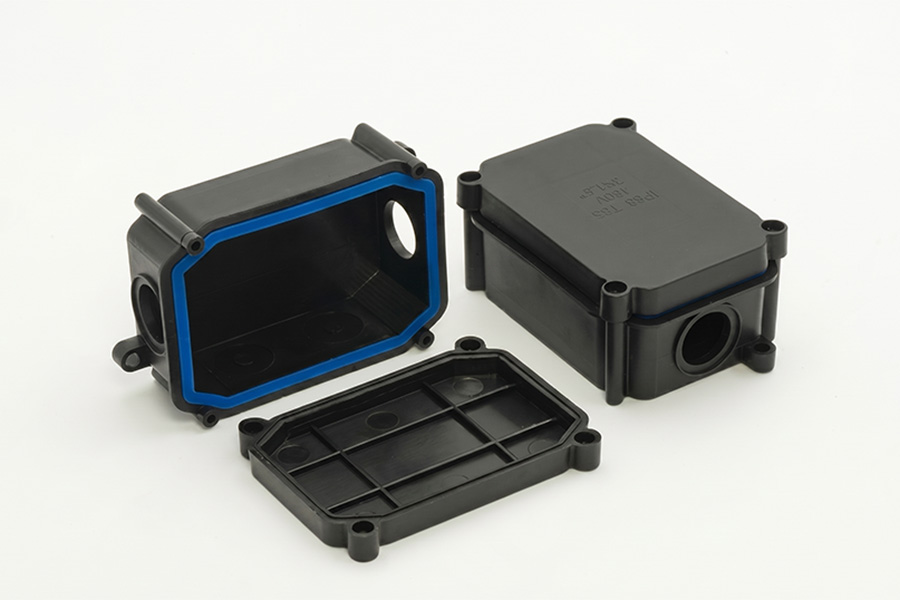

IP68 rated waterproof polycarbonate IoT enclosure

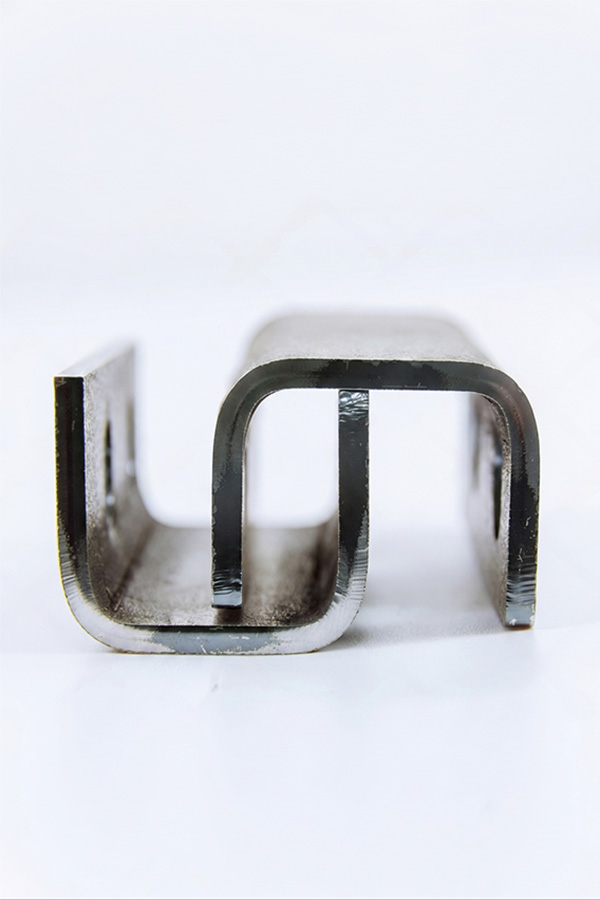

12-gauge steel structural reinforcement channel

Engineering Data for Structural Loads and Thermal Dissipation

When configuring a heavy-duty control panel box with heavy transformers or housing high-amperage VFDs, guesswork is never an acceptable engineering strategy. Heat and gravity are the constant enemies of electronic reliability. Review the precise specifications below to calculate accurate thermal rise and structural safety factors.

Structural Integrity

  • Engineered for 150 lbs of Static Load: We reject vague marketing buzzwords and rely strictly on geometry and material science. The standard rear mounting panels are structurally reinforced with formed 12 gauge (0.104 in.) steel channels.
  • The Impact: This geometry actively distributes the sheer weight across the mounting footprint, preventing catastrophic wall-stud tear-out even under maximum dynamic load environments (such as factory-floor vibration).

Thermal Management

  • Calculating Your Heat Dissipation: Enclosure overheating leads to premature component failure. We offer predictable cooling metrics so you can spec the exact thermal solution required for your internal heat load.
  • Passive Convection: Our stamped, rain-proof louvered vents support up to 250 BTUs/hr of natural heat dissipation. (Perfect for low-heat controls).
  • Active Forced Air: For high-heat drives and power supplies, our optional 120mm filter-fan kits deliver up to 105 CFM of continuous, filtered airflow, rapidly extracting ambient heat.

Build to Print Custom Enclosures Ready for Immediate Wiring

Off-the-shelf NEMA enclosures rarely fit custom control arrays perfectly. Stop voiding your IP ratings by manually cutting holes with a jigsaw in the shop. Send us your CAD files, and we will deliver modified, ready-to-wire enclosures direct from our factory floor.

List of Exact Modifications

  • CNC Punched Cutouts & Holes: Laser-precise cutouts for HMI touchscreens, push-buttons, and ventilation. Perfect edge geometry ensures standard gaskets maintain full NEMA/IP integrity.
  • Internal Mounting Hardware: We weld and pre-install custom standoffs, DIN rails, inner sub-panels, and ground studs exactly where your layout dictates.
  • Custom Gland Plates: Machined for your specific cable entry requirements, eliminating the risk of metal shavings contaminating electronics during field-drilling.
  • Industry-Specific Powder Coating: Beyond standard finishes, we offer custom colors including ANSI 61 Gray, Safety Orange, or your specific corporate RAL color, baked for ultimate corrosion resistance.

The Procurement Trigger (Lead Times)

Fast-Track Lead Times for Purchasing Managers: Customization shouldn’t derail your project timeline. Our agile fabrication cells guarantee predictability:
  • Standard Modifications (Cutouts/Paint): Turned around and shipped in 5-7 business days.
  • Full Custom Build-to-Print (Prototyping): Engineered, fabricated, and shipped in 14 days.

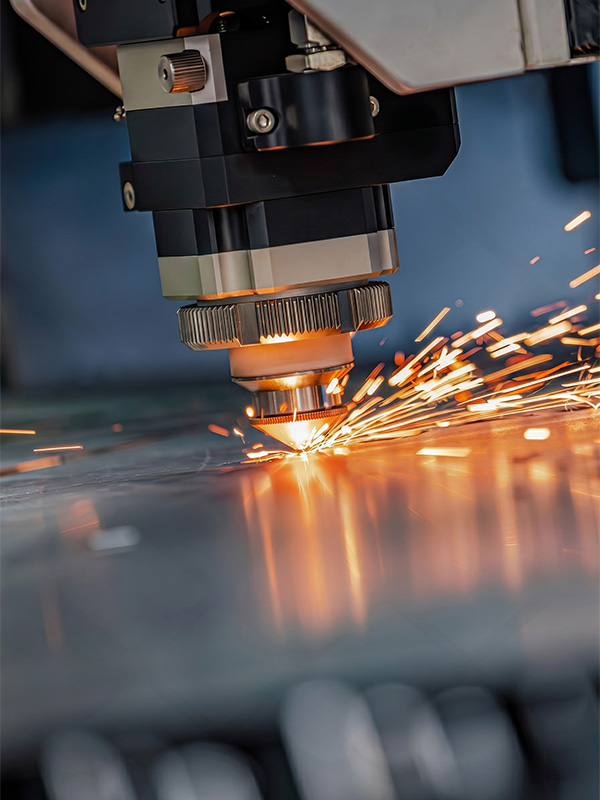

Precision laser-cut custom enclosure modifications

Pass Your Next Physical Security Audit with Tamper Resistant Enclosures

Protecting your sensitive network switches or high-voltage controls isn’t just about the weather—it’s about liability. Our enclosures are designed to provide absolute access control, giving you the exact specifications you need to satisfy strict internal safety mandates and external physical security audits.

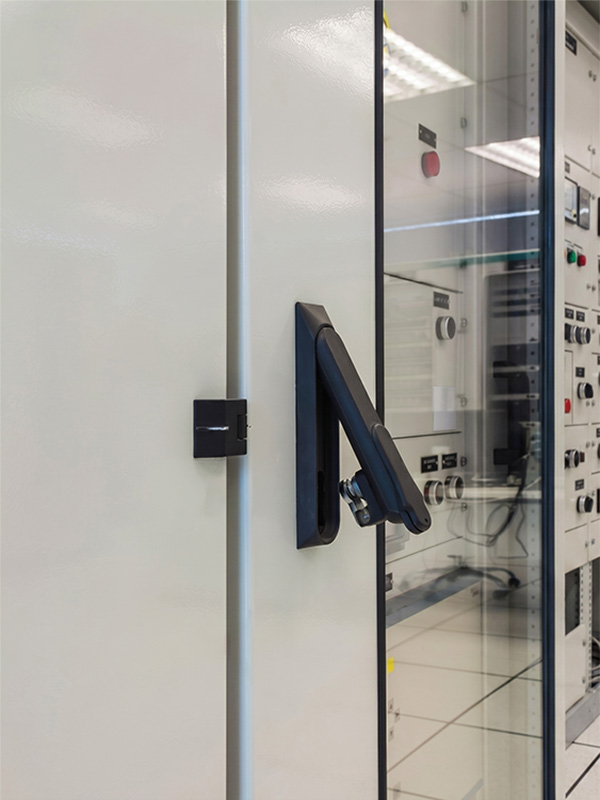

Locking Mechanisms Engineered to Prevent Tampering

Standard configurations are equipped with heavy-duty 3-point roller latching systems and seamless quarter-turn key locks.
The Audit Benefit: Prevents pry-bar attacks, guarantees tight gasket compression, and ensures that only authorized personnel can access critical infrastructure. Fully supports Lockout/Tagout (LOTO) safety procedures with optional padlock hasps.

Global Certifications to Protect Your Supply Chain

Don’t let uncertified sheet metal hold up your final inspection. We engineer our products to meet the most rigorous global standards:
  • UL 508A Compliant / UL Listed: Built to seamlessly integrate into your UL 508A certified industrial control panel builds, ensuring you pass the local AHJ (Authority Having Jurisdiction) inspections without red tape.
  • RoHS Directive: 100% free of hazardous materials, maintaining your green supply chain initiatives.
  • CE Marked: Fully vetted for integration into machinery and systems exported to the European Economic Area.

Verify Your Component Clearances Before You Spend a Dime.

Stop guessing if your VFDs, PLC racks, and wire ducts will fit. Download our complete library of standard wall mount enclosure 3D models. Drop them directly into your SolidWorks assembly to perform collision checks and finalize your internal layout today.

Get in touch

Frequently Asked Questions

Clear answers to the most common engineering and procurement questions regarding our fabrication limits, NEMA integrity, and production timelines. Still have a specific design question? Talk directly to our application engineers.
Will factory-modified cutouts void the enclosure’s NEMA 4 or 4X rating?

No. If you manually cut a hole on the job site with a hole saw, you risk compromising the seal and voiding the UL/NEMA rating. When we perform CNC laser cutting or punching in-house, we maintain exact factory tolerances. We pair these precision cutouts with appropriately rated glands, HMI covers, and gaskets, ensuring the finished weatherproof box retains its strict NEMA 4/4X watertight and dust-tight integrity.

Our MOQ is 1 unit for standard modifications or custom prototypes. We understand that integration projects often require a single proof-of-concept (POC) before a full rollout. We won’t force you into a 50-piece production run just to test a design.

Yes. Beyond standard sheet metal fabrication, we offer mechanical integration. We can pre-install 120mm filter fans, thermostats, or mount fully integrated thermoelectric (HVAC) cooling units directly onto the enclosure. The unit arrives at your facility completely ready for electrical wiring.

A bent door hinge or a dented corner ruins an installation schedule. We do not ship enclosures loose via standard parcel services. Every unit is secured with high-density foam edge protectors, strapped to heavy-duty custom pallets, and shipped via LTL (Less Than Truckload) freight to guarantee the geometry is perfect when it hits your dock.

Ready to customize your electrical enclosure? Get Your Quote in 24 Hours.

Skip the back-and-forth sales calls. Submit your specifications, napkin sketches, or 3D CAD files below. Our internal application engineers will review your thermal, spatial, and NEMA requirements, and return a highly accurate, build-ready quote within 24 hours.
