Sheet Metal Forming Services Capacities and Tolerances

High precision sheet metal forming at extreme thicknesses requires more than brute tonnage. It demands tight CNC control and applied material science throughout the entire metal forming process. Review ShincoFab‘s physical envelope, forming operations, and metallurgical limits below to verify we can execute your native CAD model without compromise.

Physical Envelope & Material Capacities

Ensure your design fits our shop’s operational envelope before submitting RFQs.

Maximum Bending Length: Up to 34 feet (single pass).
Carbon Steel (e.g., A36, 1018): Forming up to 1.5” thickness.
Aluminum Alloys (e.g., 5052, 6061): Forming up to 6” thickness (subject to temper and tooling).
Stainless Steel (e.g., 304, 316L): Forming up to 1” thickness.

Core Metal Forming Techniques

Automated sheet metal forming with CNC: Multi-axis backgauging for complex geometries and sequential bends.
Plate & Sheet Rolling: Capable of cylindrical, conical, and custom radii forms.
Deep drawing and stamping: Controlled material flow for high-depth-to-diameter ratio parts.
Tube Bending: Precision mandrel and rotary draw bending.
Hemming & Edge Forming: Flat, teardrop, and open hems for structural rigidity and safe handling.

Precision Engineering & Metallurgy Integration

Hitting tight tolerances (+/- 0.005”) requires more than sheer tonnage; it requires applied material science. Our CNC programmers and press brake operators mathematically account for material-specific variables before the first blank is bent:

Spring-back Compensation: Over-bending calculations specific to alloy yield strength, backed by adaptive bending sensors.
Grain Direction Strategy: Orienting bend lines perpendicularly to the grain structure to prevent micro-cracking and loss of structural integrity.
Material Hardness & Bend Radius (MBR): Tooling selection matching the K-factor and inside radius limits of your specified material gauge.

Precision Forming Equipment Specifications

ShincoFab does not rely on guesswork. Our +/- 0.005” repeatability is strictly enforced by the rigidity and CNC control of the following shop floor equipment.

Precision Laser Cutting

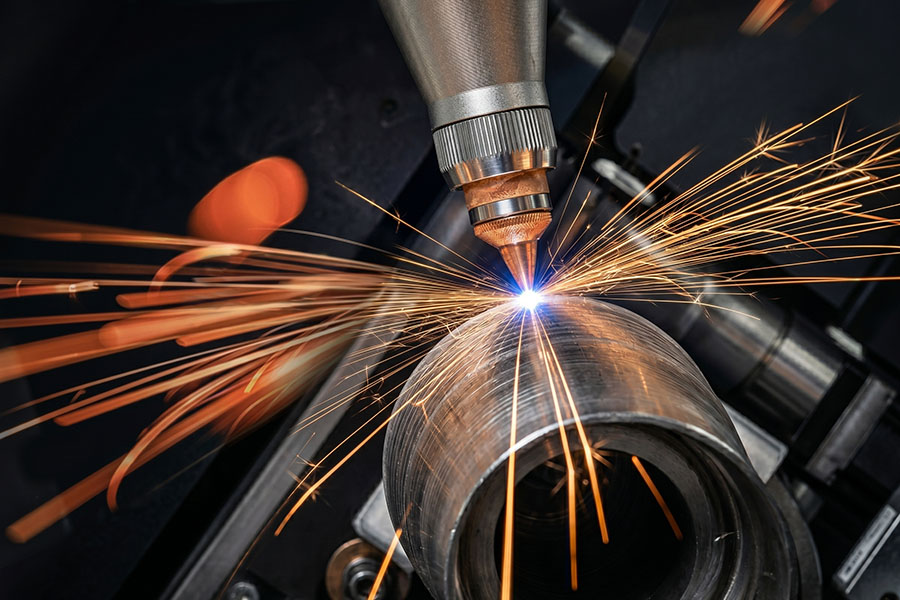

6000 Watt Trumpf Co2 Laser
Table Capacity: 60” x 120” (5′ x 10′ sheets)
Edge Quality: Clean, dross-free edge geometries to ensure accurate bend lines.

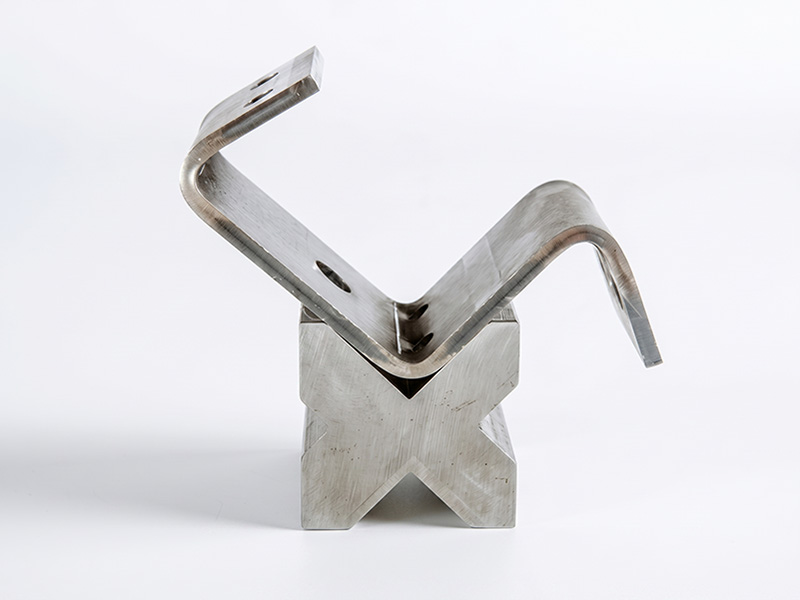

CNC Press Brakes & Forming

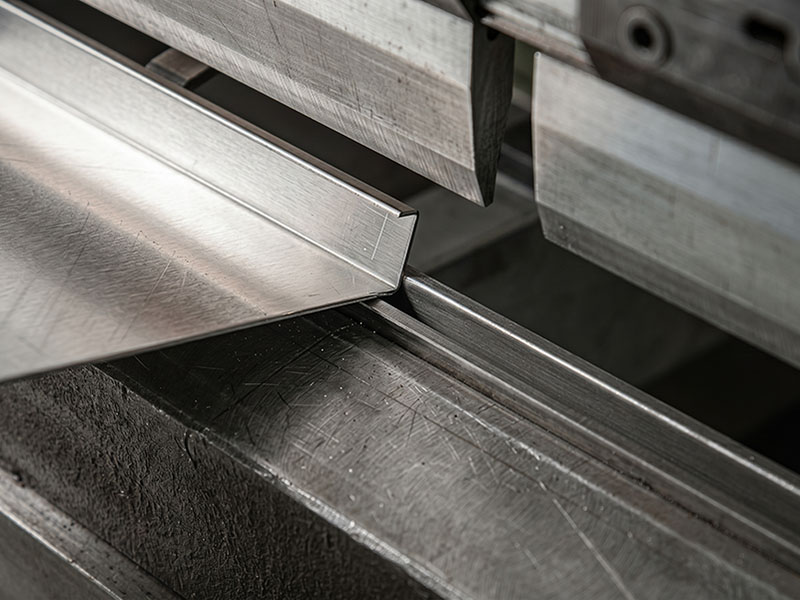

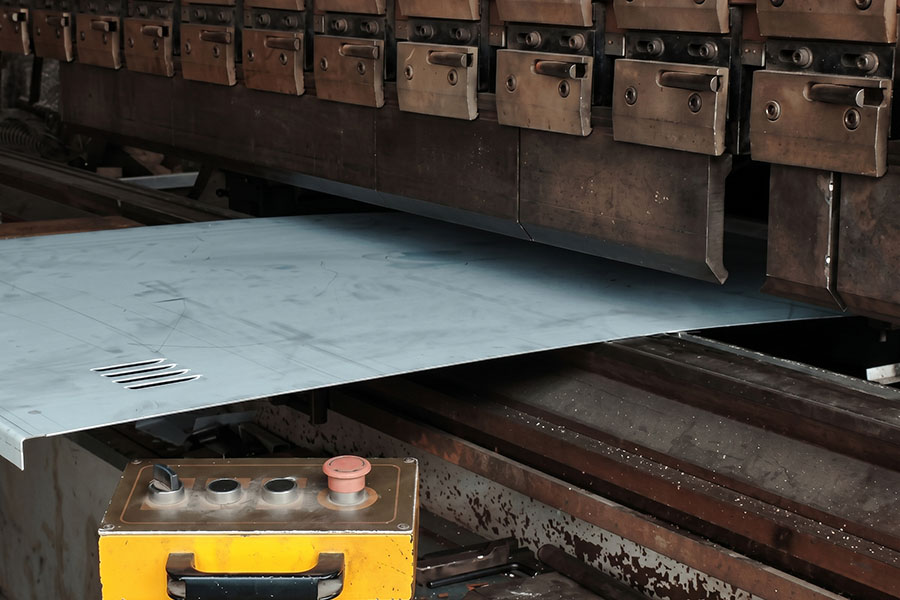

250-Ton Wysong Press Brake: For heavy gauge and long-span forming operations.
90-Ton Trumpf Press Brake: Equipped with CNC 6-Axis Back Gauging for complex, multi-flange parts with zero repositioning errors.

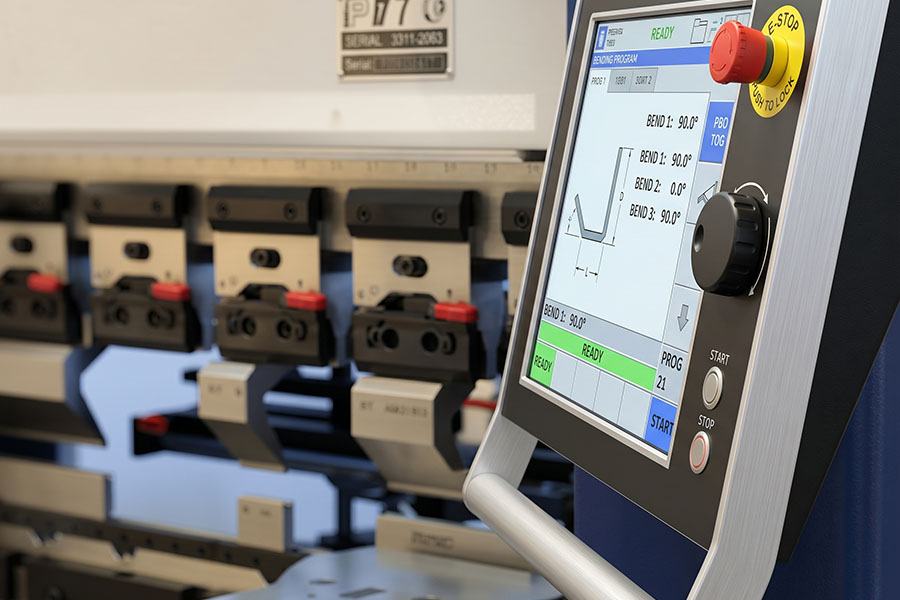

Precision Control: Adaptive crowning and dynamic angle measurement on select machines.

Plate & Sheet Rolling

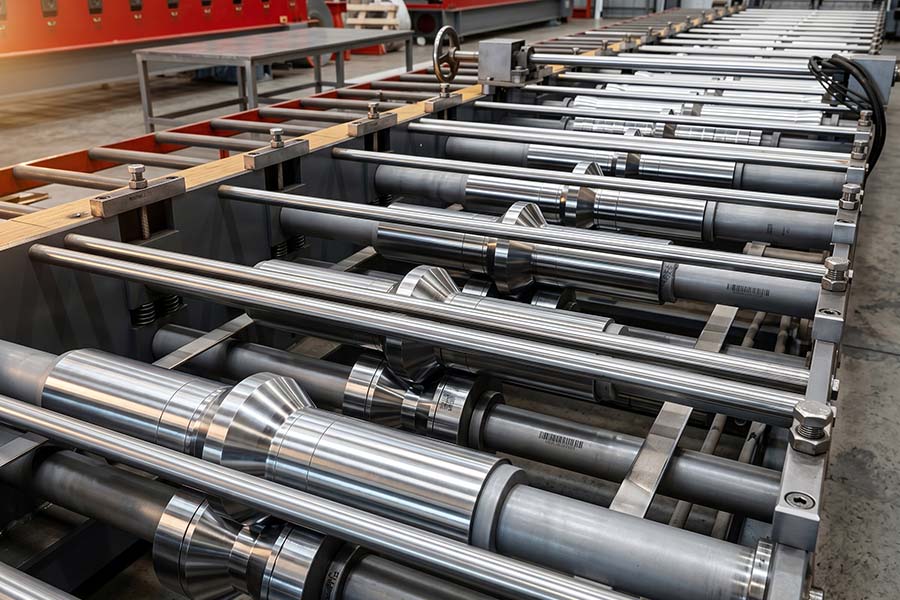

Custom Plate Rolling Equipment: Capacity up to 3/8” thickness x 6’ width.
Applications: Cones, cylinders, and large radius structural curves.

Heavy Material Handling & Fabrication Structural Capacity

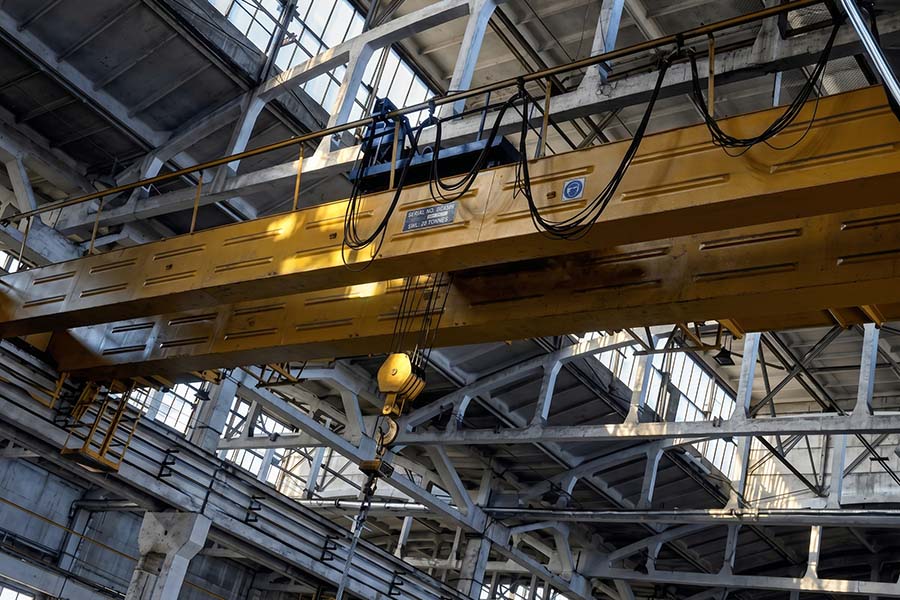

30-Ton Overhead Crane System
Shop Floor Footprint: Configured to load, maneuver, and process heavy structural steel assemblies without material surface damage or logistical bottlenecks.

Materials Processed & Formability Limits

Avoid micro-fractures, excessive spring-back, and surface galling. We source and form the following alloys to exact industrial specifications, factoring in yield strength and elongation limits before pressing:

Carbon & Alloy Steel

Grades: A36, 1018, 1045, High-Yield Structural (e.g., A514).
Thickness Capacity: Up to 1.5”.
Forming Notes: Heavy tonnage metal forming for structural components, applied with calculated K-factors to ensure accurate inside radii and flat-pattern execution on thick, high-tensile plates.

Aluminum Alloys

Grades: 5052-H32, 6061-T6, 3003.
Thickness Capacity: Up to 6” (Subject to temper).
Forming Notes: We match the alloy to the geometry. 5052 offers excellent elongation for tight bends. For rigid 6061-T6, we strictly calculate the Minimum Bend Radius (MBR) and form across the grain to prevent cracking, fracturing, or loss of structural integrity.

Stainless Steel

Grades: 304/304L, 316/316L, 430.
Thickness Capacity: Up to 1”.
Forming Notes: Processed with dedicated, non-contaminating tooling to prevent carbon cross-contamination. This preserves the chromium oxide layer for maximum corrosion resistance in marine, medical, and food-grade environments.

Copper & Brass

Grades: C110 Copper, C260 Brass.

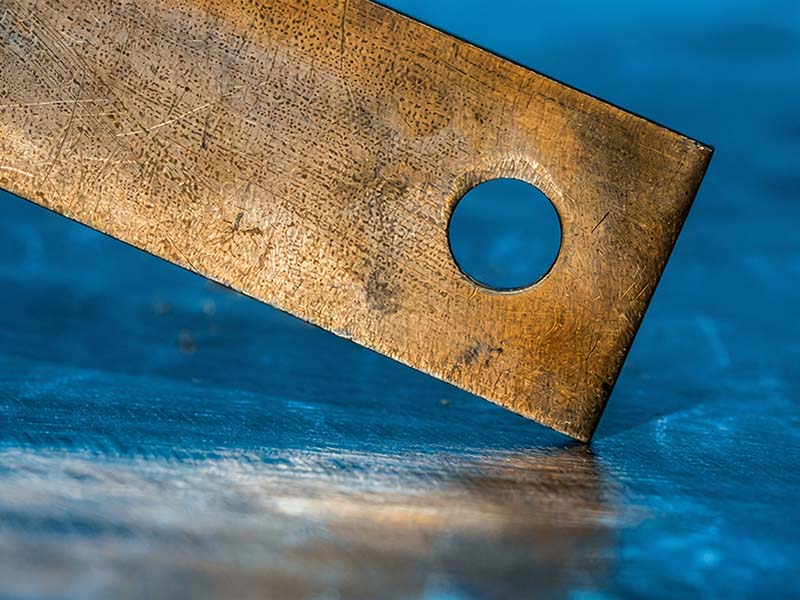

Forming Notes: High ductility for electrical busbars and architectural components. We utilize urethane/polyurethane die films during forming to prevent surface marring or tooling marks on high-value, aesthetic, or contact-critical parts.

Pre-Production DFM Engineering Review

We don’t just blindly feed your STEP files to the shop floor. A perfect 3D CAD model doesn’t always account for real-world material physics. That’s why our in-house engineers conduct a mandatory DFM review on every drawing prior to production, catching costly design flaws before the first laser cut is made.

Blank Development & Bend Deductions

We calculate exact K-factors based on your specific alloy grain and our precise tooling sets. This ensures the 2D flat pattern unwinds correctly so the 3D formed part hits your strict metal forming tolerances on the first try.

Tool Clearance & Bend Sequencing

We simulate complex bends in our CAM software to verify press brake tool clearance. By identifying potential flange collisions before setting up the machine, we avoid redesign delays and shop-floor rework.

Material Yield Optimization: We analyze your geometry to optimize plate nesting strategies and suggest minor radius standardization where applicable. This maximizes raw sheet utilization, minimizes scrap, and directly drives down your final cost-per-part.

Single-Source Fabrication and Finishing

Eliminate the logistical nightmare and supply chain risk of managing multiple vendors. When you utilize our turn-key fabrication services, you eliminate transit times, reduce overhead, and put an end to vendor finger-pointing. We control the quality from raw sheet to final finished assembly.

Precision Welding & Joining

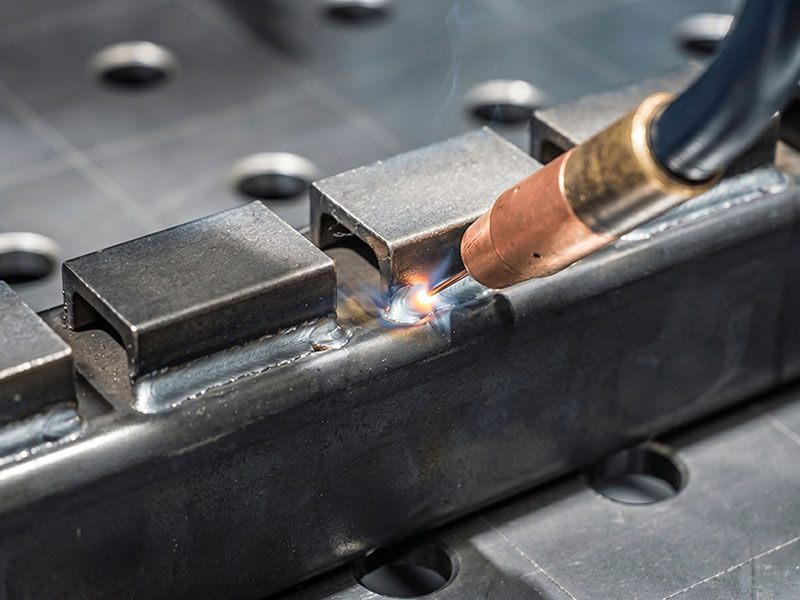

Capabilities: TIG, MIG, and Robotic Arc Welding (featuring OTC Daihen AX-V6L Welding Robots for high-repeatability joints).
Value: From watertight, aesthetically critical TIG welds on 304L stainless food-grade hoppers, to high-volume robotic MIG welding for heavy structural carbon steel frames. Penetration and structural integrity are strictly monitored.

Hardware Insertion

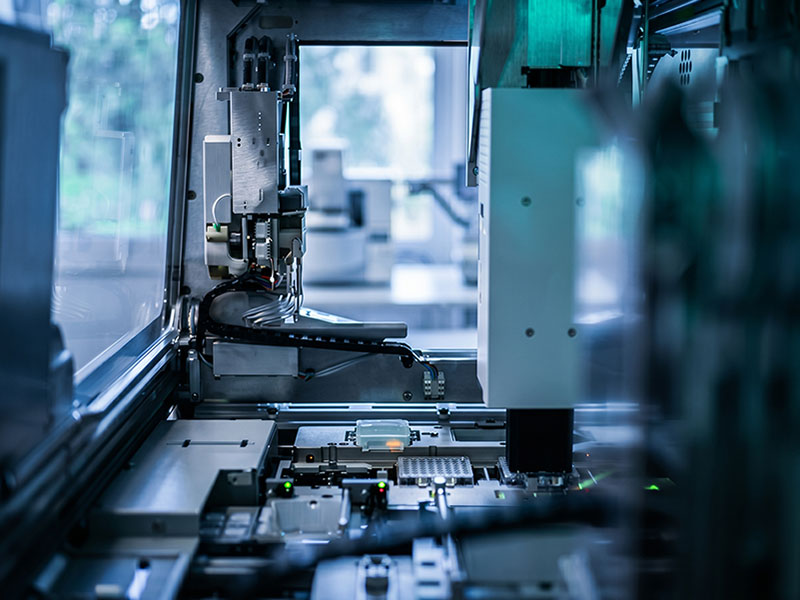

Capabilities: Automated PEM® Hardware Insertion (Nuts, studs, standoffs).
Value: Precision force-controlled pressing guarantees high push-out and torque-out resistance for your chassis and electrical enclosures, without warping the parent material.

Sheet Metal Finishing & Industrial Coatings

We apply specified finishes directly matched to your end-use environment:

Shot Blasting (Bead Blasting): Removes weld discoloration and mill scale, creating a uniform, matte surface profile ideal for paint adhesion or structural aesthetics.
Anodizing (Type II & Type III): We specify Type III (Hardcoat) Anodizing for aluminum components requiring maximum wear resistance, dielectric strength, and durability in harsh marine or aerospace environments.

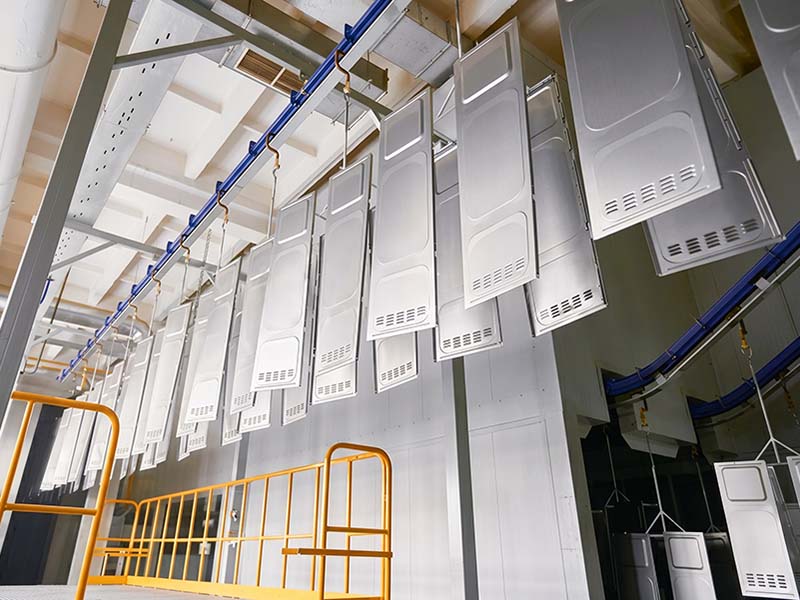

Powder Coating: High-durability, baked-on polymer finishes for exceptional chip and UV resistance on industrial and commercial exterior components.
Chem Film (Alodine / RoHS Compliant): Provides essential corrosion resistance for aluminum while retaining electrical conductivity for grounding applications in electronic enclosures.

Certified Quality Assurance

We don’t rely on visual checks and guesswork. Our quality management system incorporates strict material traceability, automated metrology, and audited processes to ensure zero line-down events for our clients.

Production Reliability Metrics

When you source through us, you are buying supply chain stability:

<0.5% Defect Rate: Engineered processes and adaptive equipment controls keep scrap out of your receiving dock.
95%+ On-Time Delivery (OTD): Master-scheduled production runs guarantee your fabrication arrives exactly when your assembly line needs it.
Full Material Traceability (MTRs): Mill Test Reports provided with every shipment, ensuring structural integrity and chemical composition audits are flawless.

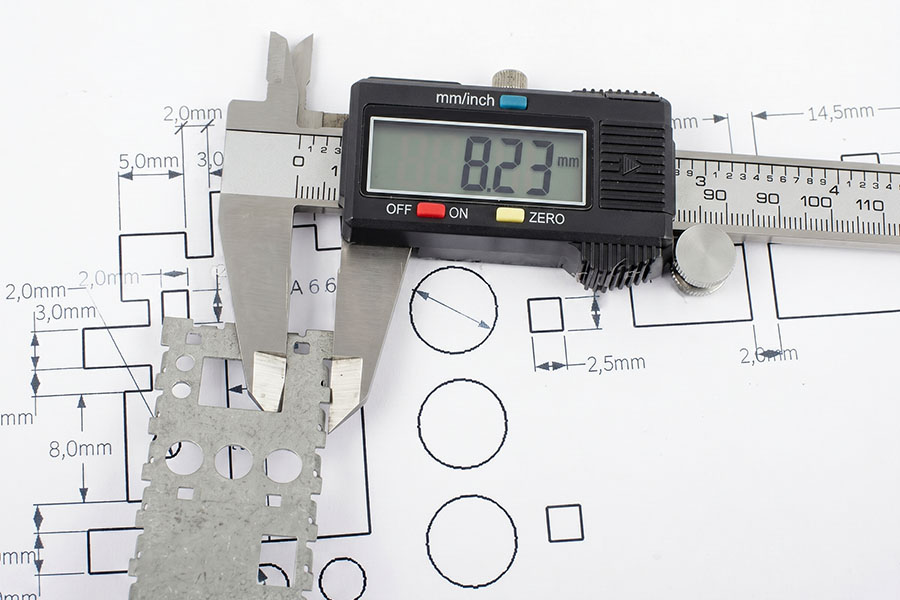

The Metrology Lab

Claiming a +/- 0.005” forming tolerance requires the metrology to back it up. Every First Article Inspection (FAI) and production run is validated using:

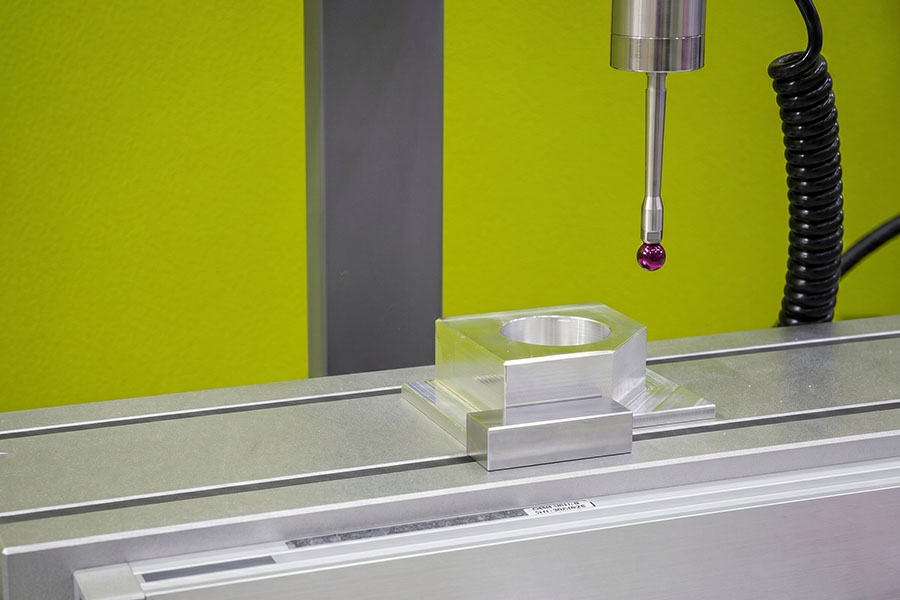

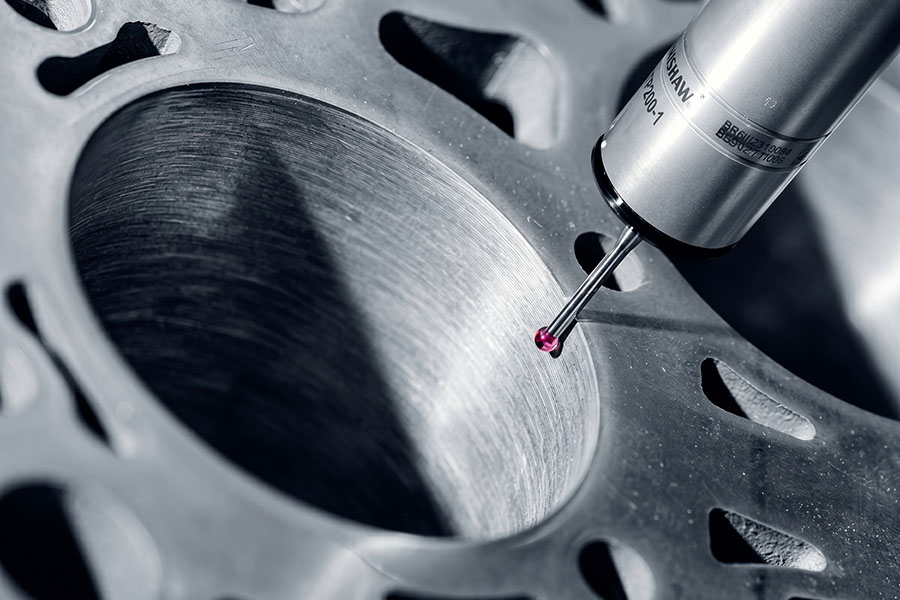

Coordinate Measuring Machines (CMM): Micro-precision probing for complex, multi-plane component geometries.
Automated Optical Inspection (AOI) & Laser Scanning: FaroArm and 3D laser profilers verify flat patterns and final bend angles against your native CAD model instantly.
PPAP & FAI Reporting: Comprehensive dimensional layouts supplied per automotive, aerospace, or medical compliance requirements.
