Aerospace Sheet Metal Fabrication

AS9100 certification, ISO 9001:2015 certification, & ITAR-Registered aerospace sheet metal fabrication. Holding precision tolerances to +/- 0.002” on aluminum, stainless steel, and titanium for commercial, defense, and space applications.

Aerospace Sheet Metal Fabrication Capabilities

At ShincoFab, we specialize in forming, cutting, and welding high-strength, temperamental aerospace alloys. Below are the exact operational limits and dimensions of our shop floor equipment.

Precision CNC press brake bending for metal sheet fabrication

CNC Precision Forming & Bending

  • Equipment: 6-axis CNC press brakes (Up to 250-ton capacity).
  • Dimensional Limits: Maximum bed length of 12 feet (144 inches).
  • Tolerances: Holding precise angular tolerances to +/- 0.5°.
Precision waterjet cutting for aerospace metal with zero heat-affected zone

Laser & Waterjet Cutting

  • Equipment: Systems engineered for precision laser cutting for aerospace sheet metal and 5-axis CNC waterjet processing.
  • Dimensional Limits: Cutting bed sizes up to 80” x 160”.
  • Material Capacities: Cutting titanium and Inconel up to 0.500”, and aerospace-grade aluminum up to 1.000”.
    Note: Waterjet cutting provides zero Heat-Affected Zone (HAZ), eliminating thermal distortion on critical airframe components.
Precision hydroformed aerospace components with complex geometries

Aerospace Hydroforming

  • Process: High-pressure fluid forming.
  • Advantage: Ideal for crafting complex, asymmetric geometries and shallow draws. Maintains exact uniform wall thickness and structural integrity without the tooling scratch marks standard stamping creates.
AWS D17.1 certified manual TIG welding for aerospace applications

Certified Aerospace Welding

  • Specs: AWS D17.1 certified fusion welding for aerospace applications.
  • Capabilities: NADCAP-accredited manual TIG and robotic welding cells strictly calibrated for aerospace welding and assembly.

Aerospace-Grade Materials & Traceability

ShincoFab goes beyond standard commercial metalworking. We fabricate specific, temper-graded aerospace alloys built for extreme environments, high strength-to-weight demands, and heavy fatigue cycles.

High-precision inspection of a lightweight 7075-T6 aluminum aerospace structural component

Aerospace Aluminum Alloys

  • Grades: 6061-T6, 7075-T6, and 2024.
  • Applications: Precisely fabricated for high strength-to-weight ratio components like fuselages, wing stringers, and lightweight avionics enclosures.

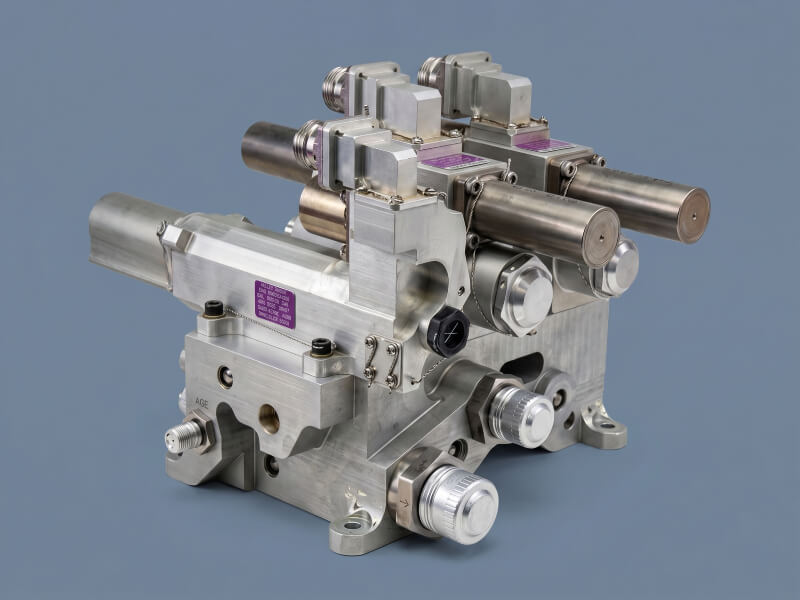

Complex 17-4 PH stainless steel hydraulic manifold assembly for aerospace

High-Performance Stainless Steel

  • Grades: 17-4 PH, 304, 316L, and 321.
  • Applications: Providing extreme corrosion resistance and high-temperature stability for engine mounts, exhaust components, and hydraulic system brackets.
Inconel 718 rocket engine nozzle for space launch vehicle components

Exotic & Superalloys (High-Temp)

  • Grades: Titanium (Ti-6Al-4V) and Inconel (625, 718).
  • Applications: Expertly cut and formed for turbine exhaust, heat shields, and advanced space launch vehicle components where standard metals fail.

100% Material Traceability & Compliance

Supply chain integrity is non-negotiable in aerospace. All materials are sourced from DFARS-compliant mills and come with complete material test reports (MTRs) and lot traceability from raw sheet to finished assembly.

Aerospace Quality Control & Audit-Ready Traceability

We engineer risk out of your supply chain. In aerospace manufacturing, absolute precision is useless without the documentation to prove it. Our inspection lab utilizes advanced CMMs to rigorously inspect aerospace sheet metal parts, ensuring every component arrives exact to print and readily complies with stringent FAA aerospace manufacturing regulations and DCMA audits.

Precision Inspection Technology

Parts are verified holding tolerances to +/- 0.002” utilizing advanced metrology equipment, including programmable CMMs (Coordinate Measuring Machines), multiple FARO Arms for complex 3D surface scanning, and ultra-precise Optical Comparators.

Advanced metrology and precision inspection for aerospace manufacturing
AS9102 FAIRs, CoC, and material certificates for audit-proof aerospace documentation

Audit-Proof Documentation

  • We deliver complete, audit-ready data packages with your components.
  • AS9102 First Article Inspection Reports (FAIRs): Fully detailed and compliant AS9102 forms (Forms 1, 2, and 3) provided seamlessly.
  • Certificates of Conformance (CoC): Sent with every shipment.
  • Complete Material Routing: 100% lot traceability from the raw material mill heat number to the final fabricated assembly.

Aerospace Components & Assemblies Fabricated to Print

We don’t just process metal; we provide custom aerospace sheet metal fabrication services for flight-critical components. Whether your designs must meet the rigorous tolerances of primes like Boeing, Lockheed Martin, or NASA, manufacturing these specific aerospace sheet metal components daily eliminates costly trial and error and delivers parts that integrate seamlessly into your final build.

EMI-shielded avionics housing for aerospace electronic systems

Avionics & Electronics Protection

  • Avionics Chassis & Enclosures: Precision-formed aluminum housings with tight seam tolerances for optimal heat dissipation.
  • EMI-Shielded Enclosures: Ensuring secure seams and perfectly flat mating surfaces to maintain electromagnetic interference (EMI) protection.
High-performance aerospace engine nacelle and propulsion component assembly

High-Temperature & Propulsion

  • Thermal Shields & Firewall Assemblies: Fabricated from Titanium and Inconel to withstand extreme exhaust temperatures and vibration fatigue.
  • Engine Nacelles: Complex curved geometries formed without material thinning or surface galling.
Structural airframe components machined to exact angular tolerances

Airframe & Structural

Structural Brackets (L-Brackets & Mounts): High-strength components cut and bent to exact angular tolerances to prevent assembly misalignment.

Full-scale structural framework for aerospace flight simulator cockpits and interiors

Interiors & Simulation

  • Cockpit Display Frames: Lightweight, high-rigidity bezels and mounting structures.
  • Flight Simulator Components: Robust, full-scale structural frameworks built for multi-axis motion stress.

NADCAP-Approved Finishing

Stop managing multiple purchase orders (POs) and shipping logistics for a single part. We deliver flight-ready components straight to your assembly line, eliminating the risk, scrap rate, and delays of managing multiple third-party vendors.

Surface Treatment & Protection

  • Anodizing: Mil-Spec Type II and Hardcoat Type III anodizing for superior corrosion and wear resistance.
  • Passivation: Certified chemical passivation for stainless steel and exotic alloys to remove free iron and prevent oxidation.
Mil-Spec Type III hardcoat anodizing on 6061-T6 aluminum aerospace component

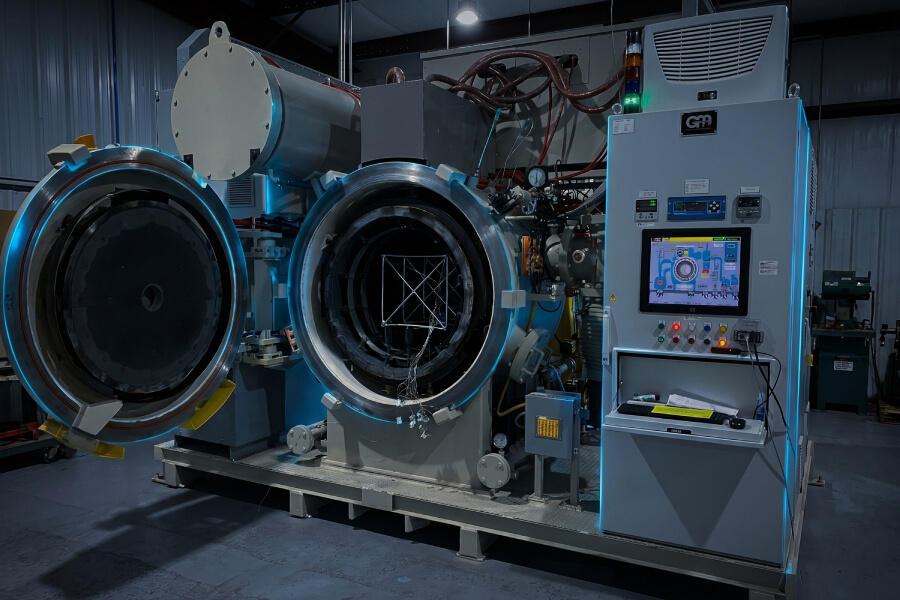

Aerospace vacuum furnace for thermal processing and stress relief

Thermal Processing

Heat Treating & Stress Relieving: Restoring mechanical properties and dimensional stability to materials post-machining or post-welding.

Precision Hardware Insertion & Assembly

Hardware Assembly: Installation of aerospace-grade PEM® fasteners, MS/NAS rivets, threaded inserts, and helicoils. All hardware is installed to exact pull-out and torque specifications prior to shipment.

Precision installation of aerospace-grade threaded inserts and Helicoils

Stop Designing in the Dark
Get a Pre-Production DFM Review

Paper tolerances don't always translate to titanium and Inconel on the shop floor. Upload your CAD files today, and our engineering team will proactively review your prints for springback risks and DFM flaws. We deliver a firm 24-hour RFQ and catch critical errors before they become expensive aerospace scrap.

Frequently Asked Questions

Sourcing flight-critical components requires more than just checking machine capacities. It demands absolute certainty in compliance, IP security, and quality documentation. Below is exactly how we handle your ITAR data, material traceability, and AS9102 reporting to keep your supply chain risk-free.

How do you handle ITAR data and proprietary aerospace CAD files?

Security is built into our workflow, not added as an afterthought. All drawings, 3D models, and BOMs are uploaded entirely through our end-to-end encrypted, securely hosted ITAR-compliant portal. Only authorized, US-based personnel have access to your prints. We execute NDAs immediately upon request before you even send the files.

Absolutely. We know that in aerospace, the paperwork is as critical as the part. Every fabrication order comes with complete material test reports (MTRs) from DFARS-compliant mills. We natively supply comprehensive AS9102 First Article Inspection Reports (Forms 1, 2, and 3) and Certificates of Conformance (CoC) so your supply chain remains strictly audit-ready for the FAA or DCMA.

Lead times depend entirely on part complexity, material availability (especially for exotics like Inconel or Titanium), and required secondary NADCAP finishing. However, unlike shops that leave you guessing, we provide an exact, hard-date lead time engineered into every quote we return to you within 24 hours.

Both. We handle everything from rapid aerospace sheet metal prototyping and production to continuous, high-volume contracts. We regularly partner with design engineers for low-volume aerospace sheet metal production on flight-test units. Once the design is proven, we scale seamlessly into full manufacturing without making you qualify a second vendor.

Request an Aerospace Sheet Metal Quotein 24 Hours

Upload your 3D models (.STEP, .IGES, .SLDPRT) and 2D prints via our ITAR-secured portal to bypass blind algorithmic quoting. Our engineers will immediately review your exact geometric tolerances, alloy specifications, and finishing requirements for true manufacturability, returning a transparent, fixed-price quote and firm production lead time within 24 hours.
