Precision Sheet Metal for Communications

Telecom infrastructure demands strict environmental sealing, optimized thermal management, and absolute signal integrity. ShincoFab manufactures the precise sheet metal for communications required to protect your critical network systems.

EIA-Compliant 19-Inch Rack-Mount Chassis and Frames

Engineered for dimensional stability and structural rigidity under heavy payload conditions. As critical sheet metal parts for telecom, we ensure precise hole tapping and hardware insertion for seamless rack integration.

NEMA-Rated Outdoor Telecom Enclosures (NEMA 3R, 4, 4X)

When building custom enclosures sheet metal for communications equipment, these units are fabricated with precise seam welding, custom gasket channels, and UV-resistant powder coating to withstand extreme weather, salt spray, and vandalism.

EMI and RFI Shielding Components

Manufactured with tight seam tolerances and specific conductive materials or platings to block electromagnetic interference and ensure zero signal degradation in high-frequency environments.

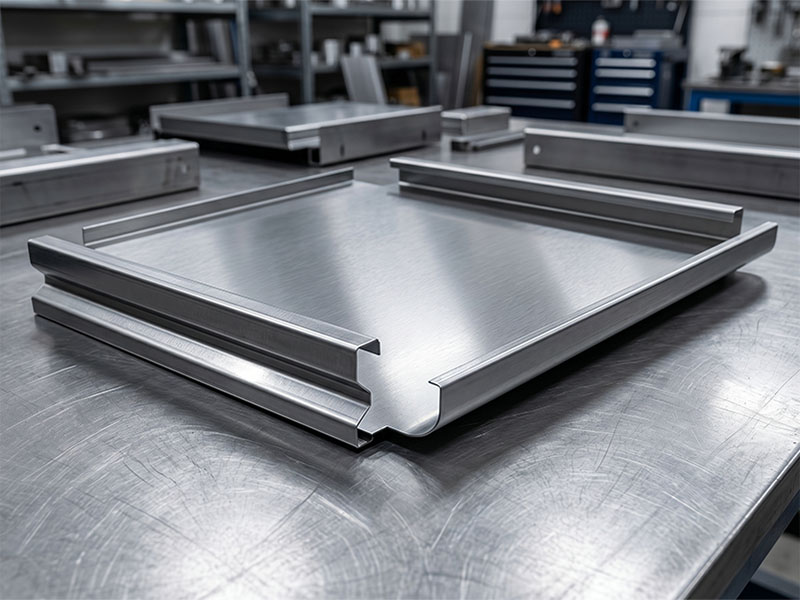

Zintec and Galvanized Control Boxes

Utilizing pre-plated Zintec to guarantee high electrical conductance for crucial earthing/grounding requirements, while providing inherent corrosion resistance without the need for secondary plating.

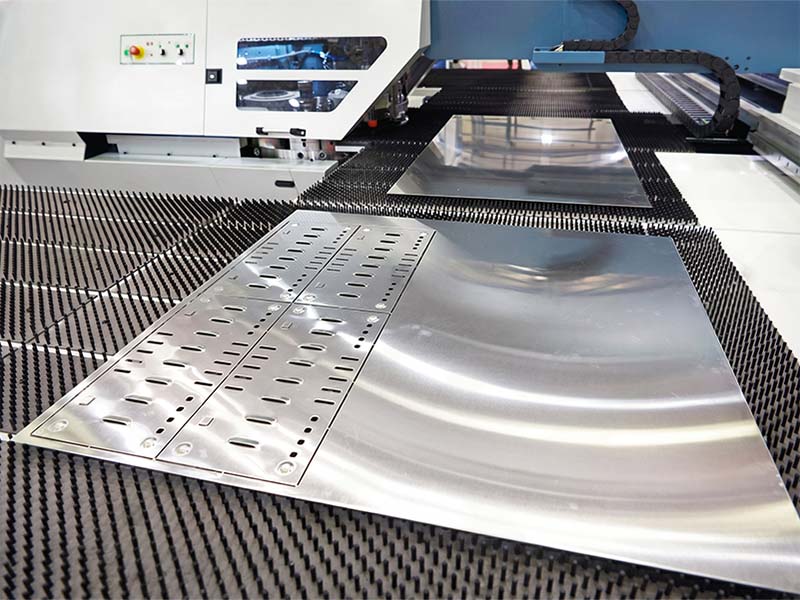

Thermal Management Panels and Heat Sinks

We utilize precision CNC punching to create complex louver patterns, perforations, and custom venting designs. This specific machining process maximizes airflow and guarantees optimal heat dissipation for your active internal electronics.

Fiber-Optic Control Boxes and Junction Panels

We manufacture these critical enclosures with strictly burr-free edges and perfectly radiused bends. By eliminating all sharp internal edges, we guarantee zero risk of micro-bending or slicing delicate fiber-optic cable jackets during field installation.

Precision Machining Tolerances & Equipment Specs

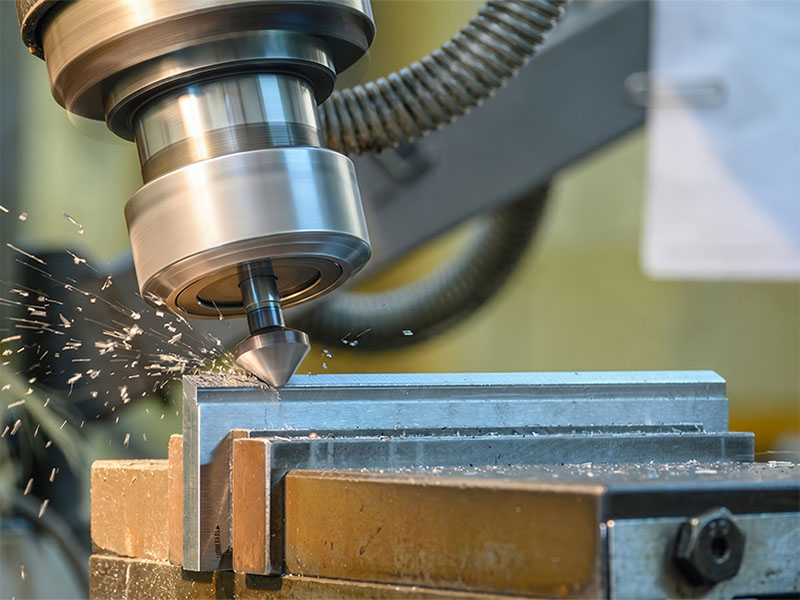

A single micro-burr or sharp edge during final assembly can instantly sever a delicate fiber-optic loom or slice through an expensive wire harness. ShincoFab eliminates this costly risk entirely. Every communication chassis and junction box undergoes our rigorous sheet metal assembly and finishing services, including edge-deburring and vibratory finishing on our floor to deliver high-quality communication parts. Smooth, radiused edges are our absolute baseline rather than an afterthought.

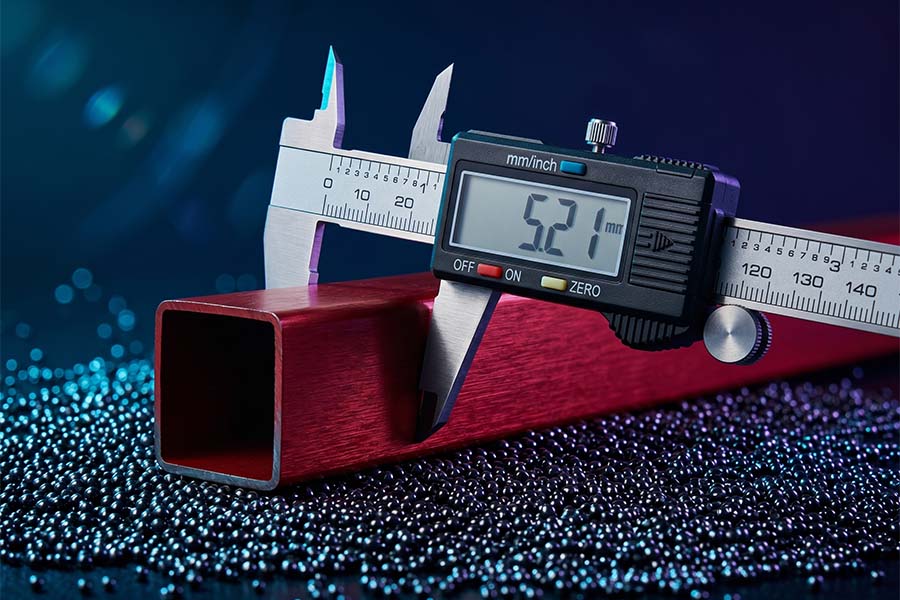

Rigid Dimensional Tolerances

Bend tolerances held rigidly to ±.005”
Hole-to-hole positioning accurate to ±.005”
Reliably maintained across sheet thicknesses from .015” to .187” (28 Gauge to 3/16”)

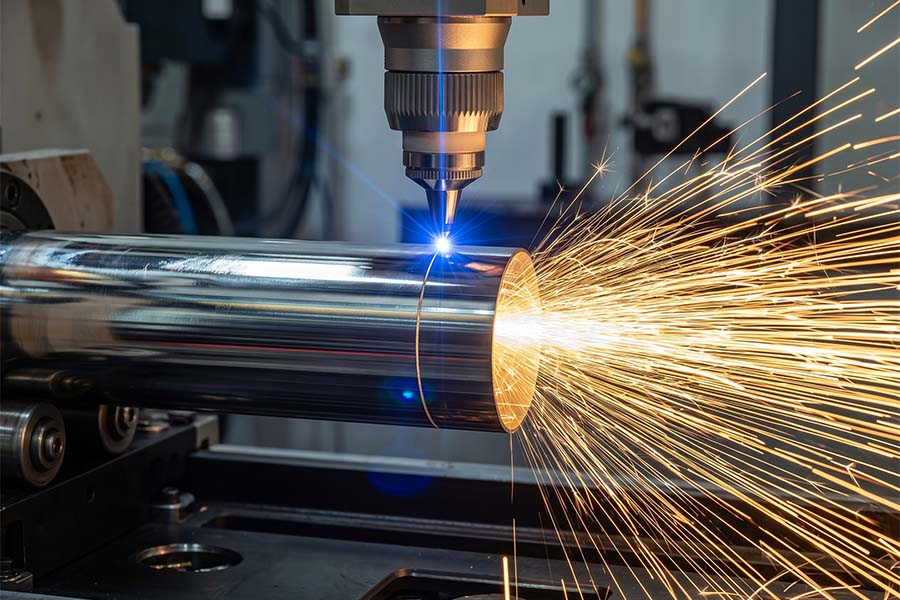

High-Speed Fiber Laser Cutting

Operating advanced 8kW Trumpf / Amada solid-state fiber lasers. This laser cutting machinery excels at laser cutting sheet metal for telecom components, delivering clean, slag-free cuts on highly reflective materials including Aluminum and Brass.
Producing flawless, ready-to-weld edges on Zintec and Stainless Steel without heat distortion.

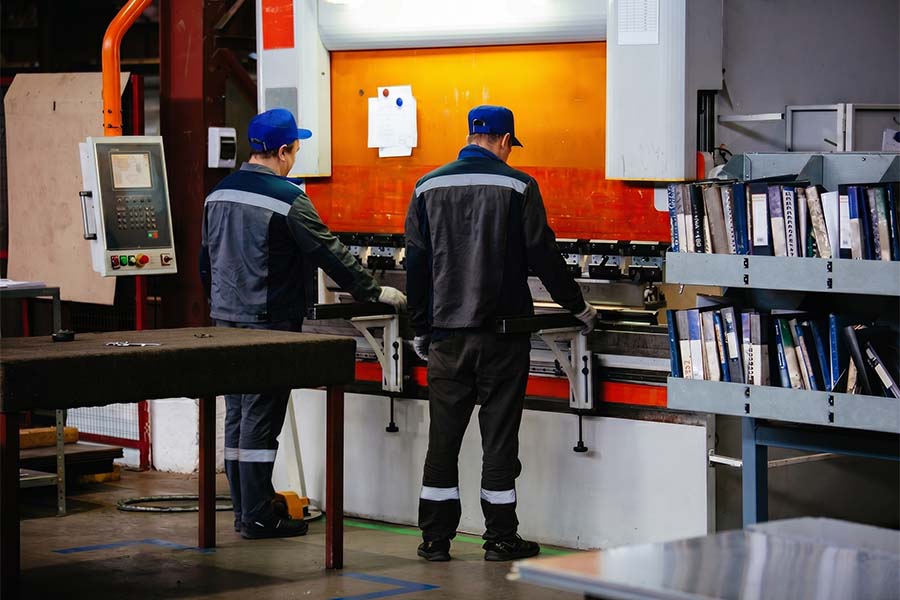

CNC Multi-Axis Press Brake Forming

Equipped with 130-Ton to 150-Ton CNC Press Brakes for precision CNC sheet bending, featuring 10-foot beds to accommodate full-length outdoor telecom cabinets.
Utilizing active angle measurement and 6-axis to 8-axis CNC back gauges for rapid, repeatable setups on complex chassis geometries.
Holding extreme parallelism on the tight U-channels and return flanges strictly required for EIA-compliant 1RU/2RU server racks.

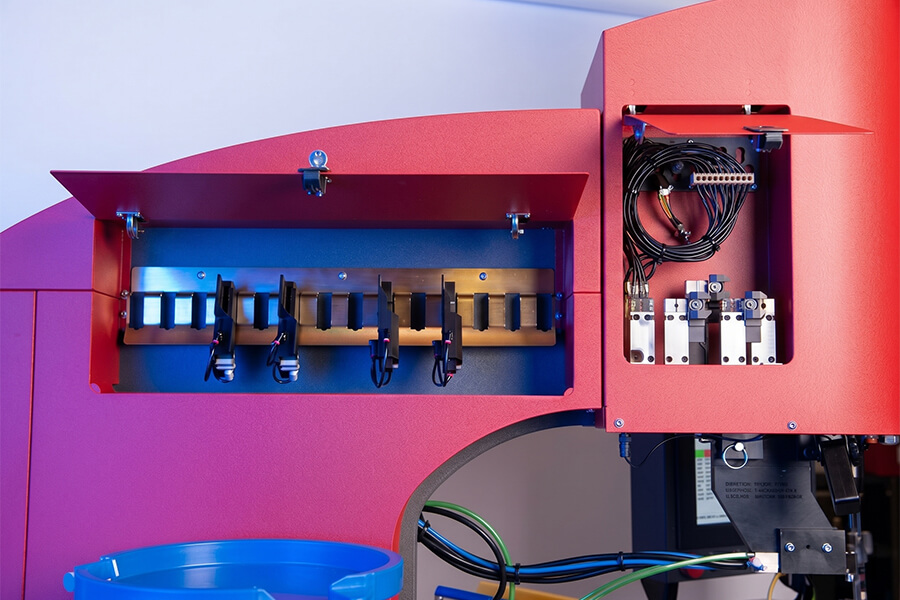

Automated Precision Hardware Insertion

Operating automated CNC insertion presses for the rapid, secure installation of PEM® studs, standoffs, and rivet nuts.
Applying precisely calibrated hydraulic force to seat hardware flawlessly without dimpling or warping thin-gauge sheet metal.
Guaranteeing perfect alignment for secure PCB mounting, raised board spacing, and EMI shielding integrity.

Telecom-Grade Materials & Environmental Finishing

Communication hardware must survive extreme conditions ranging from blistering outdoor cell towers to damp underground vaults. We engineer these high-precision sheet metal parts for telecommunications to outlast these environments. Our facility strictly utilizes traceable telecom-grade alloys combined with RoHS-compliant finishes. This prevents galvanic corrosion, ensures flawless signal grounding, and guarantees decades of reliable field life.

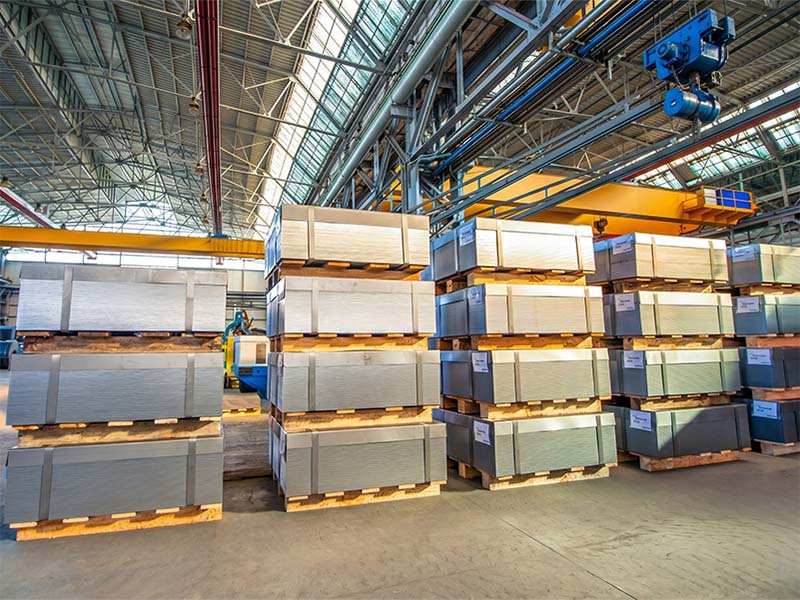

Metals & Alloys

Aluminum (5052-H32 & 6061-T6): Ideal for lightweight structural frames and chassis. 5052-H32 offers excellent formability without cracking during tight 90-degree chassis bends.
Stainless Steel (304 & 316/316L): 316/316L is our standard recommendation for NEMA 4X outdoor cabinets facing high-corrosion, coastal marine environments, or industrial chemical exposure.
Zintec (Electro-Zinc Coated Steel): Crucial for internal control boxes. It provides inherent baseline corrosion resistance while maintaining high electrical conductance for critical earthing and grounding paths.
Copper (C101/C110): Precision punched and bent for high-amperage busbars, grounding straps, and thermal management components.

Protective Finishes & Compliance

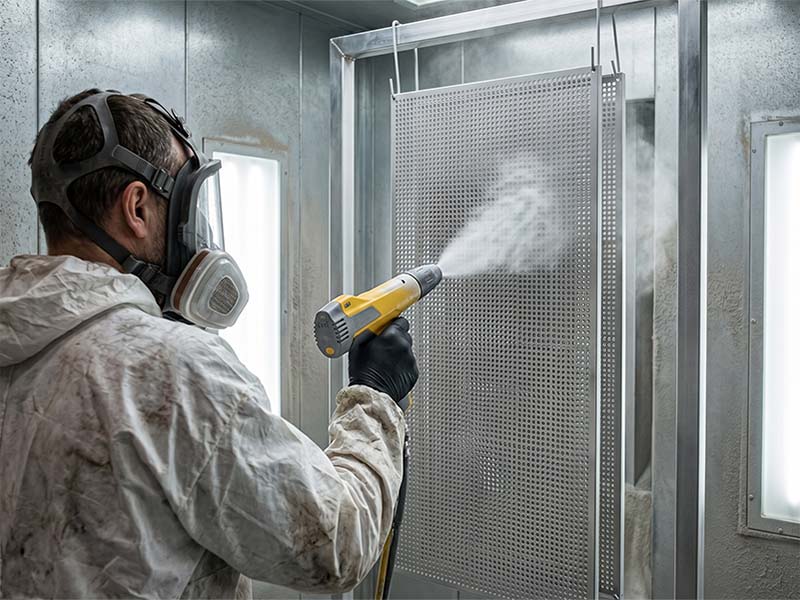

UV-Resistant Powder Coating: Architectural-grade powder coats formulated to prevent chalking, fading, and blistering on outdoor enclosures exposed to relentless UV rays and extreme weather.
Trivalent Zinc Plating (RoHS Compliant): We strictly use Trivalent (Hex-Free) zinc plating to guarantee your assemblies meet global RoHS and REACH compliance directives, eliminating regulatory risks.
Chromate Conversion / Chem Film (MIL-DTL-5541): Applied to aluminum components to maximize corrosion resistance without sacrificing the surface electrical conductivity required for EMI/RFI shielded joints.
Anodizing (Type II & Hardcoat Type III): For aluminum parts requiring extreme wear resistance, electrical insulation (dielectric properties), or specific thermal emissivity.

Zero-Risk Sourcing Through Proven Quality and Logistics

A perfectly fabricated telecom chassis is worthless if it arrives three weeks late or fails your inbound quality inspection. We protect your production schedule and bottom line through rigorous, data-driven quality control and flexible logistics management.

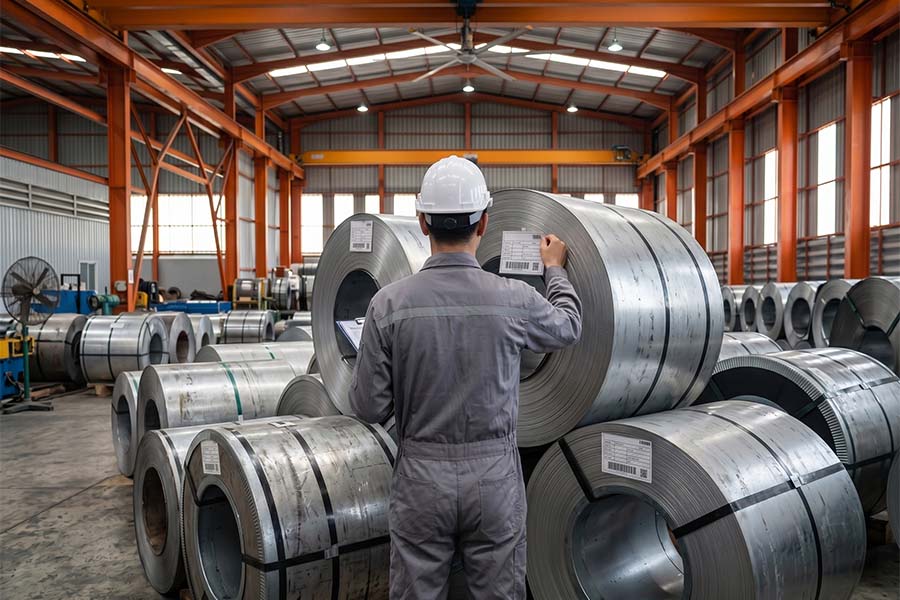

Audit-Ready Certified Quality Systems

Operating strictly under ISO 9001 and AS9100 standards. We maintain fully documented quality management systems across our entire facility. This guarantees you face zero compliance risks during your most rigorous internal or customer audits.

Data-Driven Inspection and Validation Protocols

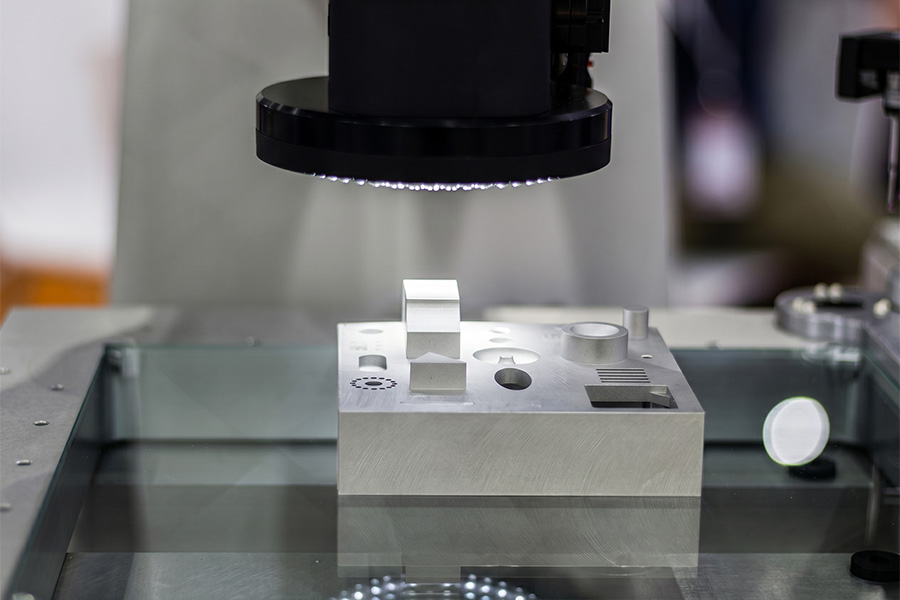

Rigorous In-House CMM Inspections. We refuse to guess when it comes to precision. Our in-house Coordinate Measuring Machines verify complex hole-patterns and multi-axis bend tolerances down to the exact micron before any part leaves our floor.
Comprehensive FAI and PPAP Documentation. We supply complete AS9102 First Article Inspection reports alongside Level 1 through 3 Production Part Approval Process documentation. We never initiate mass production until your engineering team is 100% confident in the prototype.

Logistics and Inventory Solutions to Protect Your Cash Flow

Synchronized Just-in-Time (JIT) Delivery. We route components directly to your active assembly lines to eliminate severe warehousing constraints and keep your production schedule intact.
Strategic Vendor Managed Inventory (VMI). Our facility holds dedicated safety stock of your high-volume telecom brackets and outdoor enclosures. You pull inventory exclusively when you need it, which drastically reduces your overhead carrying costs.

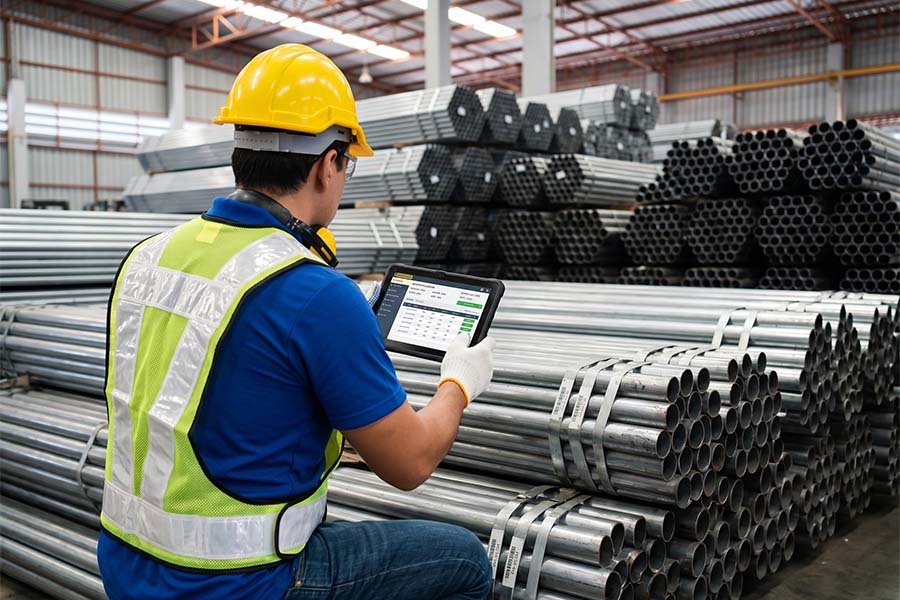

Fully ERP-Tracked Production. You gain total operational transparency from the initial raw material sourcing—backed by certified Mill Test Reports—straight through to the final palletized delivery.

Frequently Asked Questions

We refuse to operate as a blind build-to-print shop. Our engineers actively optimize your designs for manufacturability to drive down costs and streamline your entire supply chain. Read how we answer the most critical questions from telecom engineers and procurement managers below.

Do you offer Design for Manufacturability (DFM) reviews to reduce our production costs?

Yes. We actively review your drawings to uncover hidden savings before production begins, whether you need prototype communication equipment sheet metal fabrication or full-scale manufacturing. For example, a telecom client recently brought us an over-engineered thermal management enclosure that was too heavy and expensive to produce at scale.

We conducted a rigorous DFM review and substituted their expensive proprietary alloy with precision-formed Aluminum 5052-H32. By redesigning the CNC punch tooling for the louver vents, we reduced the per-unit weight by 14% and maintained the NEMA 4X rating. This single intervention generated $27,000 in annualized production savings for the client.

Can you protect our assembly lines from unpredictable sheet metal lead times?

Absolutely. We utilize Vendor Managed Inventory (VMI) programs to completely eradicate supply bottlenecks and ensure rapid turnaround sheet metal fabrication communications. A national broadband provider recently approached us because they were experiencing severe assembly line stoppages due to an unpredictable 4-to-6-week lead time on custom 19-inch racks.

We transitioned their production to our VMI program and held three months of strategic safety stock in our facility. This strategic move slashed their component lead times from four weeks to just three days and achieved a 0% stock-out rate over the past 18 months while freeing up their warehouse space.

How do you guarantee your sheet metal components will not slice our delicate fiber-optic cables?

We eliminate this liability completely through our 100% burr-free vibratory finishing process. A network infrastructure manufacturer was suffering an 8% rejection rate because sharp edges on their standard sheet metal junction boxes were slicing delicate fiber-optic jackets during field installation.

We took over the project, implemented our vibratory finishing process, and integrated strict edge-radii checks into our CMM inspection phase. Splicing defects instantly dropped to 0%. This completely eliminated their field failure liabilities and saved the client an estimated $15,000 in scrapped assemblies per quarter.

Upload Your CAD File for a Firm Quote Within 24 Hours

Stop waiting weeks for pricing when you need to fabricate custom sheet metal parts. Send us your STEP, IGES, or DXF files today. Our engineering team will immediately review your drawings for DFM (Design for Manufacturability) to identify any potential cost-savings, and provide a firm, itemized quote within 24 hours.
