Frequently Asked Questions
If you are designing for extreme environments or strict OEM requirements, there is no room for error. Here are the facts on how we handle the complex details of custom HMI integration.
How do you handle thermal dissipation in a completely sealed NEMA 4X enclosure?
Trapped heat from wattage generated by the HMI and internal PLCs is the enemy of sealed electronics. We calculate your internal heat load against the total surface area of the enclosure. For minor heat loads, we maximize passive radiation through optimized box sizing and material selection. For extreme thermal loads, we accurately machine and integrate NEMA 4X certified active cooling solutions. These include fully sealed thermoelectric Peltier coolers or compressed air Vortex tubes to ensure zero compromise to your watertight seal.
What is the true difference between your standard NEMA 4X box and your IP69K Sanitary enclosure?
While both are watertight and corrosion-resistant, IP69K sanitary design requires completely eliminating bacterial traps. A standard NEMA 4X box may have flat tops or exposed threads. Our IP69K enclosures feature:
- Sloped Roofs (typically 15° to 30°): Forces water and harsh chemicals to run off immediately, preventing pooling.
- Crevice-Free Construction: We use 100% continuous TIG welds (ground smooth) rather than spot welds.
- Hygienic Hardware: FDA-compliant blue silicone gaskets and internally concealed hinges to meet strict Food & Beverage / Pharma washdown protocols.
Can you integrate custom OEM branding, silk-screening, or laser engraving?
Absolutely. You are building a premium machine, and the HMI is the central interaction point for your customer. It should never look like a generic afterthought. We offer permanent fiber laser engraving, UV printing, or traditional screen printing for your company logo, safety warnings, or operational button labels. These premium industrial processes are designed to withstand harsh chemical cleaning without fading.

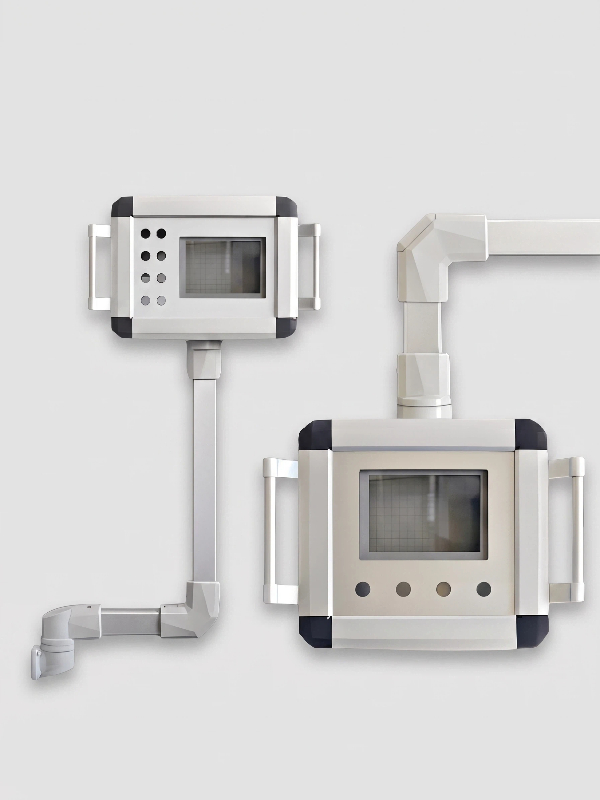

Do we need to source our own suspension arm, or can you provide the complete package?
While we specialize in the enclosure itself, we can do both. If you already have a preferred arm, we will machine the exact cutouts and reinforcing plates for it. If you need a turnkey solution, we can supply high-load extruded aluminum pendant arms alongside the enclosure, shipping it to you as one cohesive, ready-to-install unit.
