Equipment & Facility Capabilities
Built for scale. Engineered for precision. Explore our ISO 9001:2015 certified facility featuring automated fiber lasers, CNC press brakes, and robotic welding. We maintain strict repeatability across all production volumes.
Faster Turnarounds and Proven Supply Chain Reliability

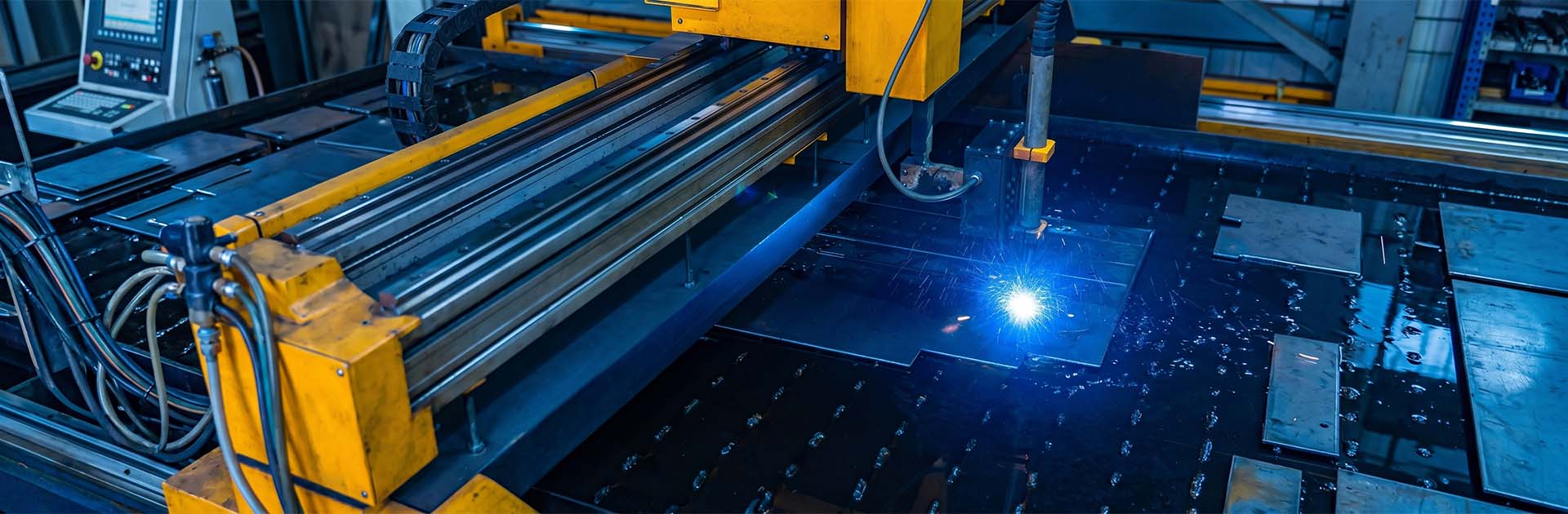

High-speed fiber lasers drive rapid turnarounds
Equipped with advanced fiber laser technology, we deliver exceptionally fast and precise cutting across a wide range of thicknesses. By pairing dedicated machine capacity with streamlined shop floor routing, we quickly process your high-volume orders without bottlenecks.
True Single-Source Capability
We execute precision laser cutting, multi-axis CNC forming, hardware insertion, robotic welding, and final surface finishing entirely under one roof. This consolidated approach eliminates the margin-stacking, transit delays, and quality finger-pointing common in multi-vendor supply chains.
Guaranteed Consistency Across High Volumes
Manual forming and hand welding introduce uncontrollable variables. Our CNC press brakes with automated crowning and robotic welding cells eliminate this guesswork.We sell certainty, maintaining strict process control so that dimensional accuracy and weld integrity stay tightly within your allowable tolerances across the entire production run.
Data-Backed Quality Assurance
Every production run is backed by full material and process traceability. We provide the standard compliance documentation your team needs, including Material Test Reports (MTRs) for raw metals, First Article Inspection (FAI) reports, and final QC sign-offs.

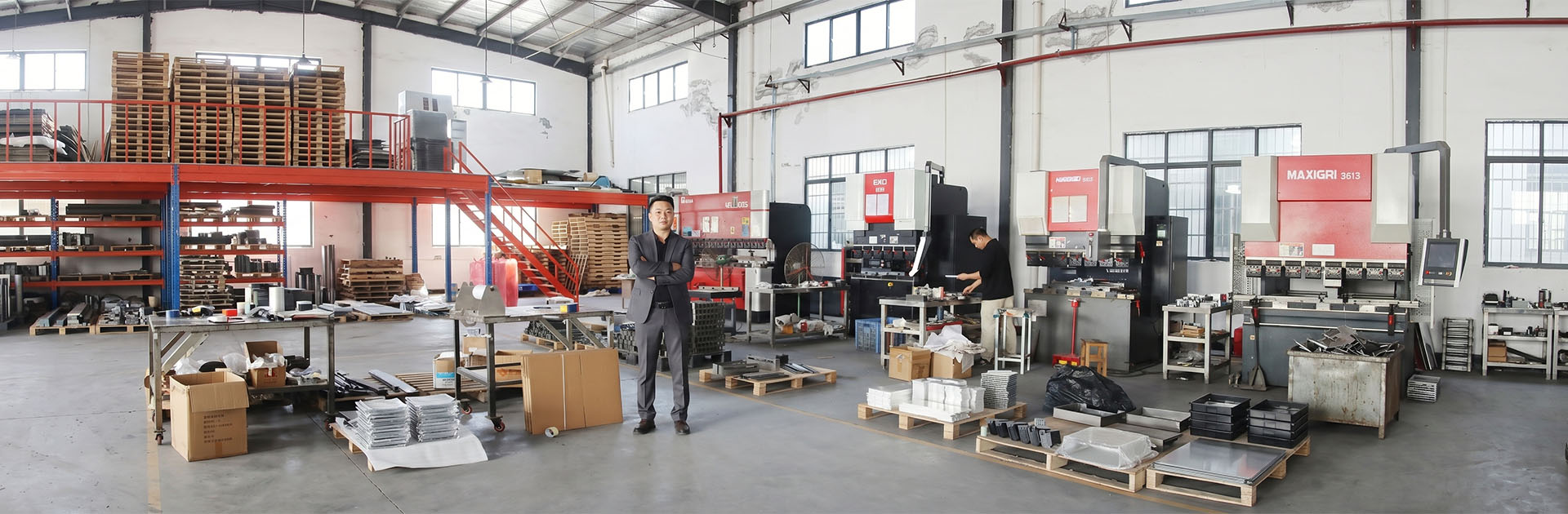

Facility Capabilities & Core Equipment List
At ShincoFab, we engineer for precision and scale for volume. Here are our exact machine constraints for your DFM reference.
| Process & Equipment | Working Envelope (Size/Capacity) | DFM Constraints & Specifications | Key Features & Applications |
|---|---|---|---|
|
Laser Cutting 8kW LVD Fiber Laser (QTY: 1 System) | 60" x 120" bed (1500mm x 3000mm) | Max Thickness: Carbon Steel 25mm, Stainless 25mm, Aluminum 25mm Tolerance: ±0.05mm | Automated load/unload tower for continuous high-speed profile cutting. |
|
Heavy CNC Forming 135-Ton LVD Toolcell Press Brake (QTY: 1 Machine) | 10 ft. (120 inches) bed length | 120-inch bends: Max thickness approx. 3.5mm (10 Gauge) 6mm (1/4") plate: Bends limited to lengths under 100 inches 12mm-20mm plate: Limited to short brackets under 24 inches | 6-Axis CNC backgauge. Automated tool changer and automated crowning for consistent, high-precision repeatability. |
|
Light CNC Forming 50-Ton Amada CNC Press Brake (QTY: 3 Machines) | 4 ft. (48 inches) bed length | Optimized for lighter gauge metals and tight-radius bends | High-speed forming for small enclosures and brackets. |
|
CNC Punching 30-Ton Amada Turret Punch Press (QTY: 1 Machine) | 50" x 100" standard bed (Y-axis throat depth: 50") | Capable of processing parts longer than 100" via auto-repositioning in X-axis (requires max 50" material width) | 40-station turret with auto-index for complex flat-pattern geometries. High-speed louvers, extrusions, embossing, and perforated patterns. |
|
Robotic Welding Panasonic TAW Welding Cell (QTY: 1 Cell) | 6-Axis robotic arm 3-Axis Turntable | Programmed for high-volume repeatable MIG/TIG routines | Flawless seam consistency and deep penetration for heavy structural runs. |
|
Manual Welding Miller Syncrowave (TIG) & Millermatic (MIG) (QTY: 6 Stations) | 6 dedicated weld stations | AWS D1.1 & D1.2 Certified welders | Custom and low-volume Steel, Stainless, and Aluminum assemblies. |
|
Hardware Insertion Haeger 824 WindowTouch Press (QTY: 4 Machines) | 8-Ton pressing capacity | Auto-feed bowl system for continuous hardware feeding | Fast and flush insertion of PEM nuts, standoffs, and captive fasteners. |
|
Value-Added Machining Haas VF-2 CNC Vertical Mill (QTY: 2 Machines) | 30" x 16" X/Y travel limit | Parts exceeding 30" in length can be processed via multiple set-ups/indexing. Parts exceeding 16" in width may require manual secondary operations. | Precision countersinking, tapping, and post-fabrication secondary milling. |
Material Capabilities & Processing Thickness Limits
We stock a wide range of standard metals to ensure fast project kick-offs. Material Test Reports (MTRs) and mill certifications are available upon request.
| Material Family | Specific Grades Processed | Processing Thickness Limits | Common Applications |
|---|---|---|---|
| Stainless Steel | 304, 304L, 316, 316L, 430 | 0.5mm (26 GA) to 25mm (1.0") | Medical enclosures, food processing equipment, marine components. |
| Aluminum Alloys | 5052-H32 (Excellent for bending) 6061-T6 (High strength) 1100 |
Sheet (Bending): 0.5mm to 6mm (1/4") Plate (Cutting): Up to 25mm (1.0") | Aerospace brackets, heatsinks, electronic chassis. |
| Carbon & Coated Steels |
Cold Rolled & Galvanized: CRS, SPCC, SECC, SGCC Hot Rolled Plate: A36, Q235 |
CRS/Galvanized: CRS, SPCC, SECC, SGCC Hot Rolled: A36, Q235 | Heavy machinery panels, structural brackets, electrical enclosures. |
| Copper & Brass | Copper C110 Brass C260 | 0.5mm to 8mm (0.315") | Busbars, electrical contacts, grounding plates. |
Metrology-Backed Quality Control
A rejected part creates expensive assembly line shutdowns. We prevent out-of-spec parts from reaching your floor through rigorous and verifiable inspection protocols.
Baseline Manufacturing Tolerances
- Laser Cutting & Punching: ±0.05 mm (±0.002 inches)
- CNC Bending & Forming: Linear ±0.1 mm (±0.005 inches) | Angular ±0.5°
- Welding & Final Assembly: ±0.5 mm (±0.020 inches)
Advanced Metrology Equipment
We don’t rely on guesswork. Every dimension, angle, and weld seam is verified using advanced metrology equipment:

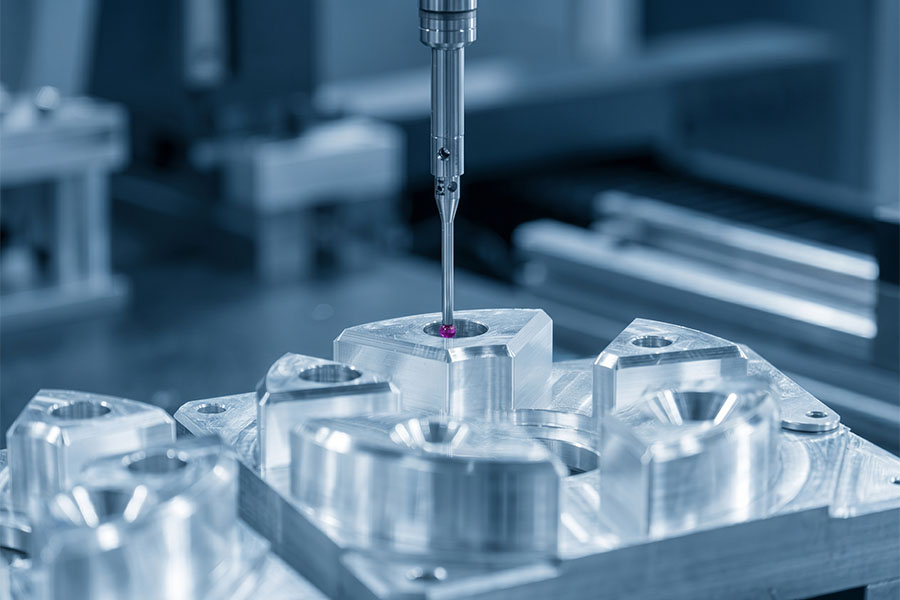

- Zeiss / Hexagon CMM (Coordinate Measuring Machine): For high-precision 3D geometric dimensioning and tolerancing (GD&T) verification.
- Optical Comparators & Vision Systems: For rapid, non-contact measurement of flat-pattern profiles and micro-features.
- Routine Calibrated Tools: Digital calipers, height gauges, micrometers, and custom go/no-go pin gauges.
Certifications & Compliance Documentation
We provide the exact paperwork your supply chain management team requires to maintain compliance:
- Facility Certifications: ISO 9001:2015, AS9100:2016 (Aerospace), and IATF 16949:2016 (Automotive) certified quality management systems.
- FAI (First Article Inspection): Detailed FAI reports provided for new production runs to verify dimensional accuracy and material compliance before volume manufacturing begins.
- Material Traceability: Material Test Reports (MTRs) and mill certifications are kept on file for raw material verification.
Secondary Operations and Surface Finishing
Simplify your supply chain with a single point of accountability. We manage the entire finishing process through our in-house systems and audited local partners. We deliver fully finished components ready for your assembly line.
Coatings & Plating
- Powder Coating: Durable, high-quality finishes with custom color matching (RAL/Pantone) and diverse textures (matte, gloss, sand, wrinkle).
- Anodizing (Aluminum): Type II (Standard aesthetic/protective) and Type III Hardcoat (For extreme wear resistance and dielectric properties).
- Zinc Plating: Clear, yellow, or black chromate conversion coatings for cost-effective steel corrosion protection.
Surface Preparation & Treatment
- Passivation: Essential for stainless steel parts and weld seams. We remove free iron and contaminants to restore the passive oxide layer (compliant with ASTM standards).
- Bead Blasting: Achieving a uniform, non-directional matte or satin finish prior to anodizing or for final aesthetic presentation.
- Automated Deburring: Edge-breaking and slag removal to ensure parts are safe to handle and perfectly prepped for coating.
Part Marking & Hardware
- Silk Screening: Precision application of logos, warning labels, and control panel nomenclature.

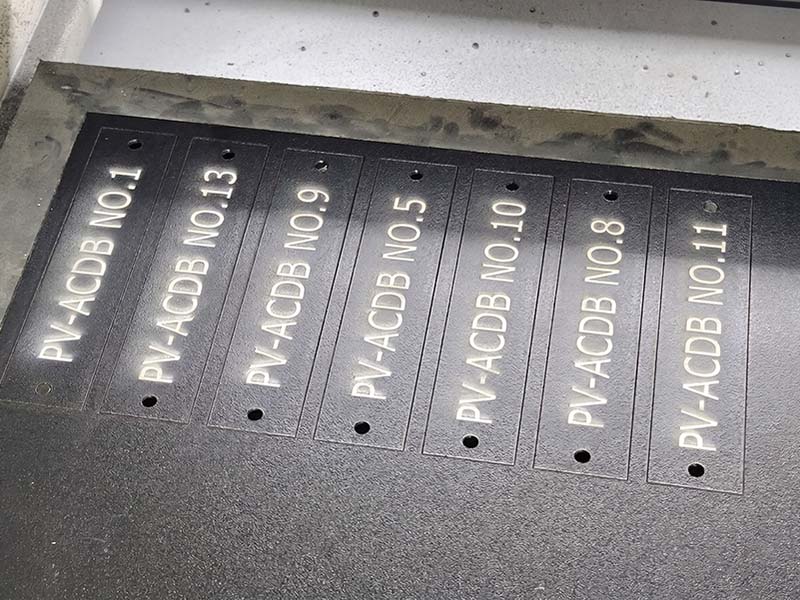

- Laser Engraving: Permanent marking of part numbers, serial numbers, QR codes, and barcodes for strict traceability.
Request a Quote and DFM Review
Consolidate your fabrication and finishing under one roof. Upload your CAD files today for a prompt engineering review and an accurate quote.
